The sheet-metal side of switchgear: panels, doors, barriers, cell structures, bus compartments and panel enclosures, fabricated to your OEM print at volume and finished in-house.
Switchgear OEMs and integrators don't want a metal shop that needs the difference between a low-voltage panelboard section and a medium-voltage metal-clad cell explained to them. They want a supplier who can take a released drawing package for a lineup — frames, side sheets, doors, hinged panels, interphase barriers, bus compartment covers, rear covers, roof plates — and deliver it powder-coated, hardware installed, and staged for their assembly line.
That is what this page is about. FabTek fabricates switchgear panels and panel enclosures as a contract fabricator to the OEM's print at our Hazlehurst, Mississippi plants: Amada fiber laser and CNC press-brake forming for repeatable panel flatness and bend accuracy, AWS-certified welding on frames and weldments, hardware and PEM insertion, and in-house powder coat to the OEM's color and film build. We run production programs at hundreds of enclosure units a month on a single shift, and we hold the same tolerance discipline on a 14-gauge door as on a welded frame. For complete free-standing and walk-in enclosures, see our switchgear enclosures page; this page covers the panels and components that go into a lineup.
Hinged front panels, instrument doors with cutouts, rear and side covers, roof plates, kick plates, filler panels — laser-cut with all cutouts, formed, hardware installed.
Welded and bolted section frames, cell dividers, mounting rails and racking structures for LV and MV lineups.
Steel interphase and inter-compartment barriers, bus compartment covers and cable compartment sheets to print. Metal only; non-metallic (glass-polyester) barriers are supplied by the OEM.

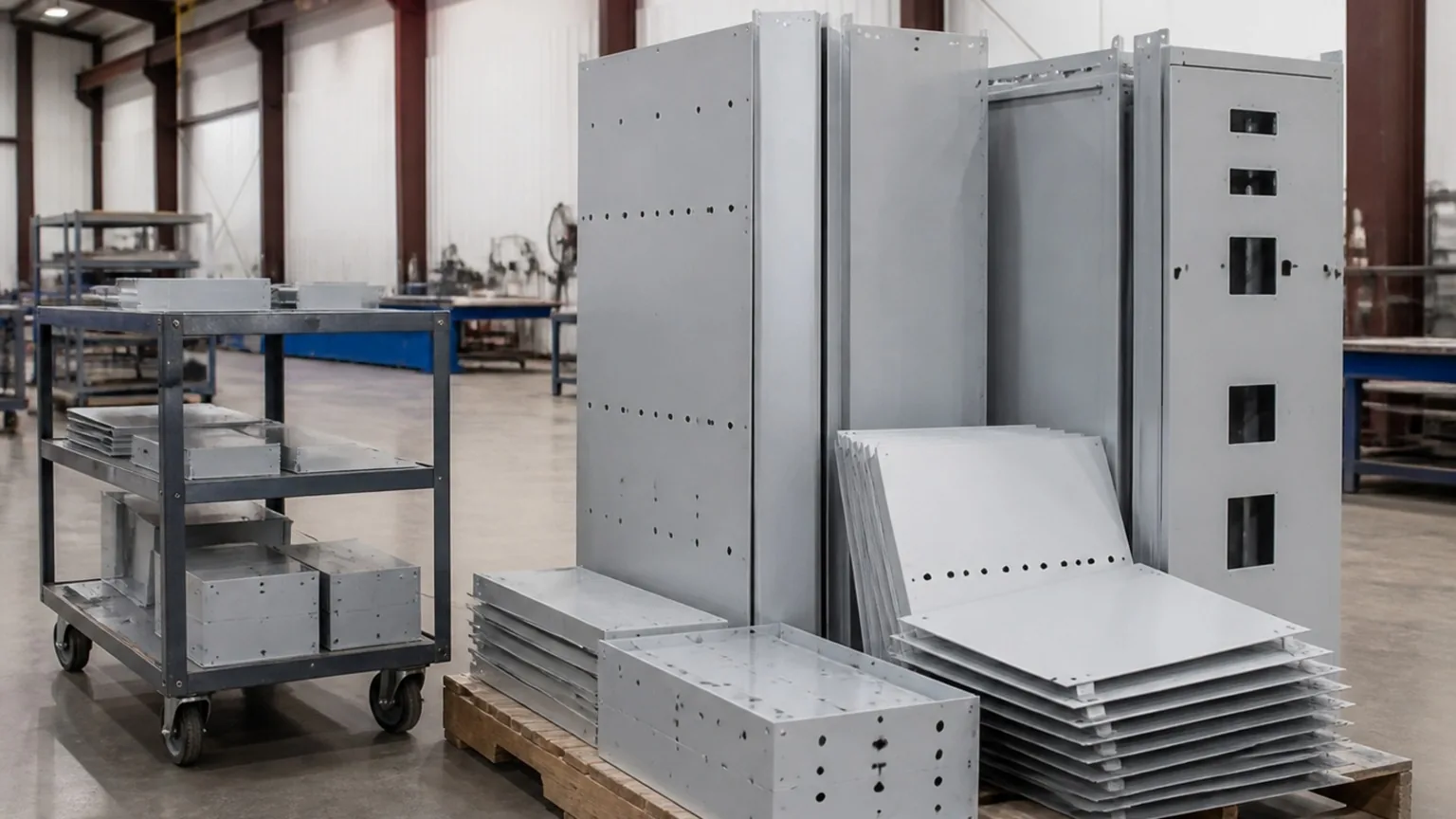

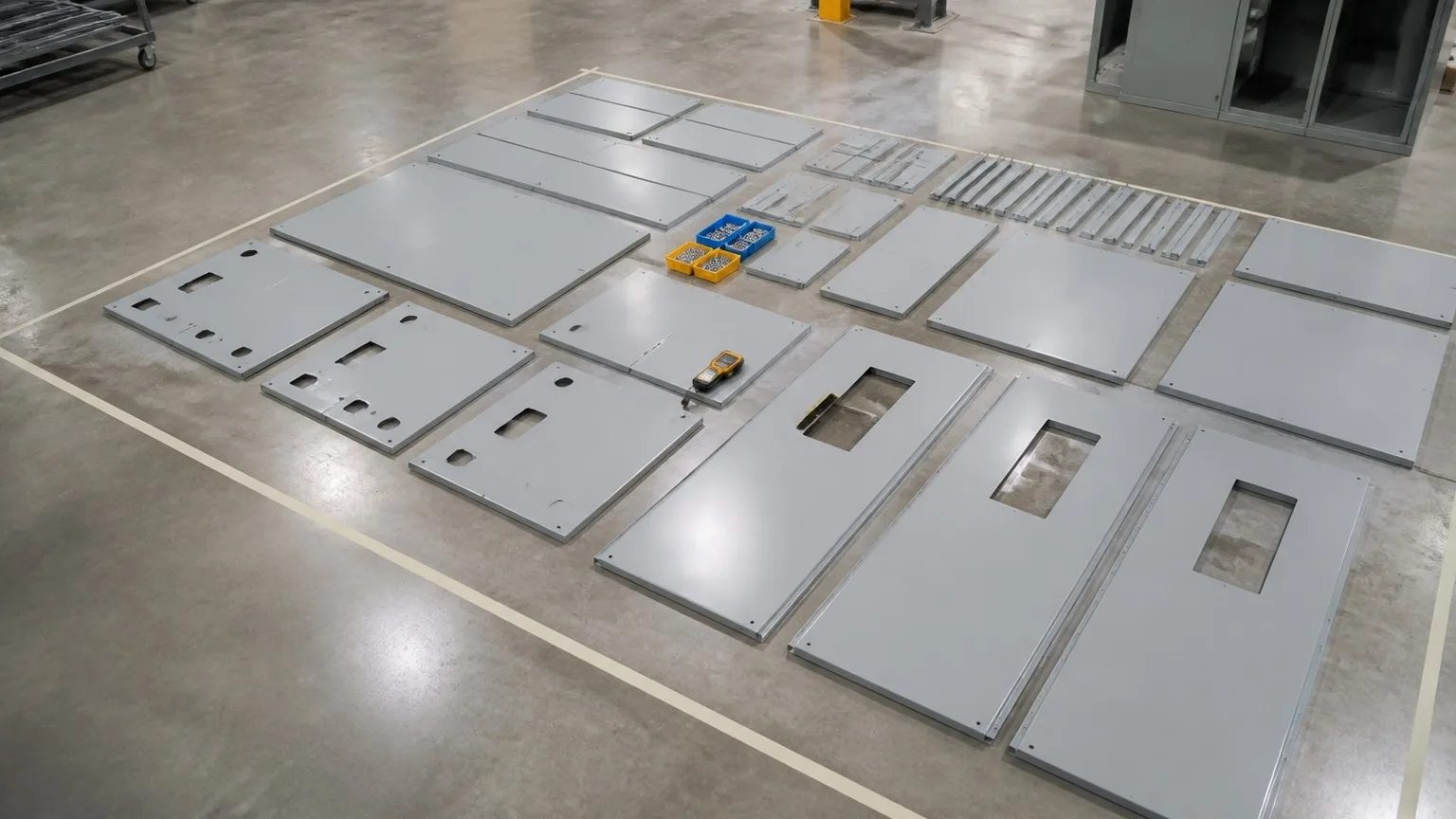

Complete sheet-metal kits per section, labeled and staged for your assembly line, with hardware bagged per your BOM.
Low- and medium-voltage switchgear, motor control centers, panelboards and switchboards, power distribution units, and the custom lineups built for data centers, utilities and industrial plants. The panels we fabricate ship to OEM and integrator assembly floors, where they become the housing for breakers, bus and controls.
For data center power chains, switchgear sections and PDU cabinets are the metal-intensive part of the electrical room — see inside the data center electrical room. For utilities, the same panel work shows up in relay and control houses.
| Materials | Carbon steel (CR, HR, galvanneal), stainless 304/316, aluminum 5052 |
|---|---|
| Gauges | 18 ga through 1/4" plate on sheet work; structural shapes for frames |
| Cutting | Amada ENSIS 3015 AJ fiber laser; OMAX waterjet for thick plate |
| Forming | Amada CNC press brakes — see our 5052 bend-radius spec sheet |
| Hardware | PEM fasteners, weld studs, hinges, latches, handles installed to print |

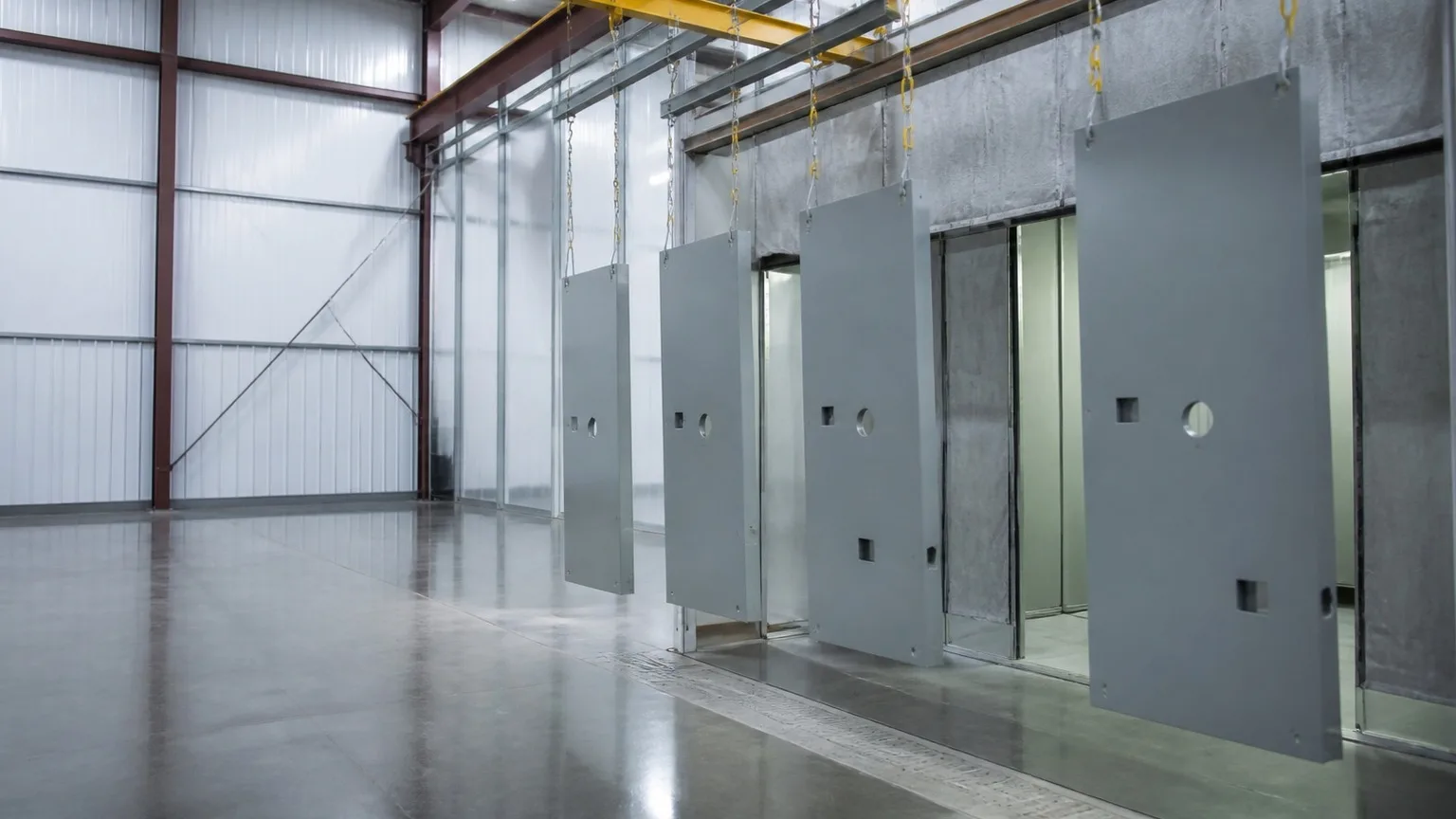

| Finish | In-house powder coat to OEM color and film build; see powder coat film thickness |
| Welding | AWS D1.3 sheet, D1.1 structural, D1.6 stainless — which code applies |
| Program model | Blanket orders with scheduled releases, revision control and line-side staging as your program requires |
| Also specified as | Switchgear sheet metal, switchgear components, panel enclosures, switchgear doors and covers, cell structures, switchgear cabinets, panelboard enclosures |
Representative capabilities — exact ranges, ratings, and finishes are confirmed per project. Send drawings for a firm quote.
Switchgear OEMs release the same section families month after month with engineering changes layered on. We run those as programs: a blanket order, monthly releases against your forecast, revision-controlled drawings on our side so a changed door doesn't ship with the old cutout, and material either consigned or bought to your spec with certs. Our guide to running an OEM–fabricator program describes how we structure it.
Built at four production sites in Hazlehurst, Mississippi.
ISO 9001:2015 quality management, AWS-certified welding, OSHA-compliant facilities.
In-house powder coat backed by an IEEE 2000-hour salt-spray certification.
Reserved-line capacity and the automation to grow with your volume.
FabTek Industries fabricates switchgear panels, doors, barriers, frames and complete enclosures as a contract fabricator for switchgear OEMs and integrators, at four plants in Hazlehurst, Mississippi, with in-house powder coat.
We build to your print. Our engineering group reviews the package for manufacturability and flags issues before cutting, but the design authority stays with the OEM.
Yes — panels, covers, barriers and hardware kitted per section, labeled to your part numbers and staged for line-side delivery.
From prototype lineups to production programs at hundreds of enclosure units a month on a single shift, with dual-shift capacity available.
Explore related lines: Switchgear enclosures · Control cabinets · Bus duct housings · Electrical assembly & wiring
Further reading: Switchgear enclosures for data centers · Running an OEM–fabricator program · Stalled line vs. reserved capacity
Send a section drawing package and your monthly volume — we'll quote the sheet-metal scope and propose a release schedule.
