The pieces that finish a transformer tank — bolted and welded covers, conservator tanks, radiator header flanges, cable boxes and mounting brackets — fabricated to the OEM's drawings and finished to match the tank they ship with.
A transformer tank is more than the body. The cover carries the bushings, the pressure-relief device and the lifting points, and has to seal against the tank flange for the life of the unit. The conservator holds the oil expansion volume above the tank and connects through the Buchholz relay. Radiator headers, cable boxes, control cabinets, jacking pads and mounting brackets round out the assembly. OEMs often buy these separately from the tank body, on different schedules, from a fabricator who can hold the same flange patterns and the same finish.
FabTek fabricates covers, conservators and tank accessories to print at our Hazlehurst, Mississippi plants, alongside the corrugated, power, pad-mount and round tank bodies they belong to. Plate is laser cut and formed, flanges are machined flat, welds are made by certified welders and leak-tested where the drawing calls for it, and every piece goes through our in-house powder-coat line so the cover matches the tank.

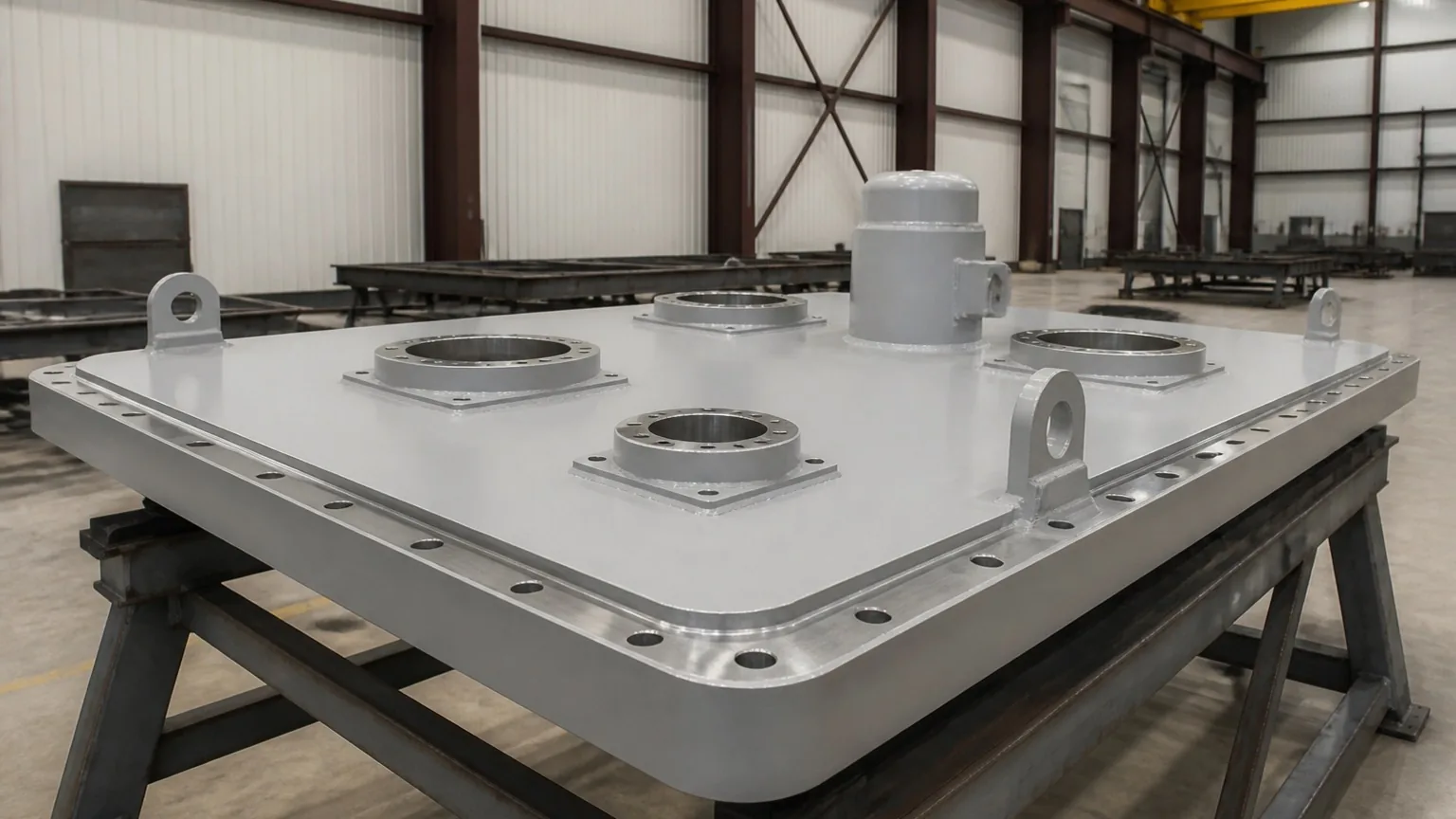

Bolted and welded covers with bushing pads, PRD and gauge bosses, lifting lugs and gasket grooves machined to the tank flange pattern.

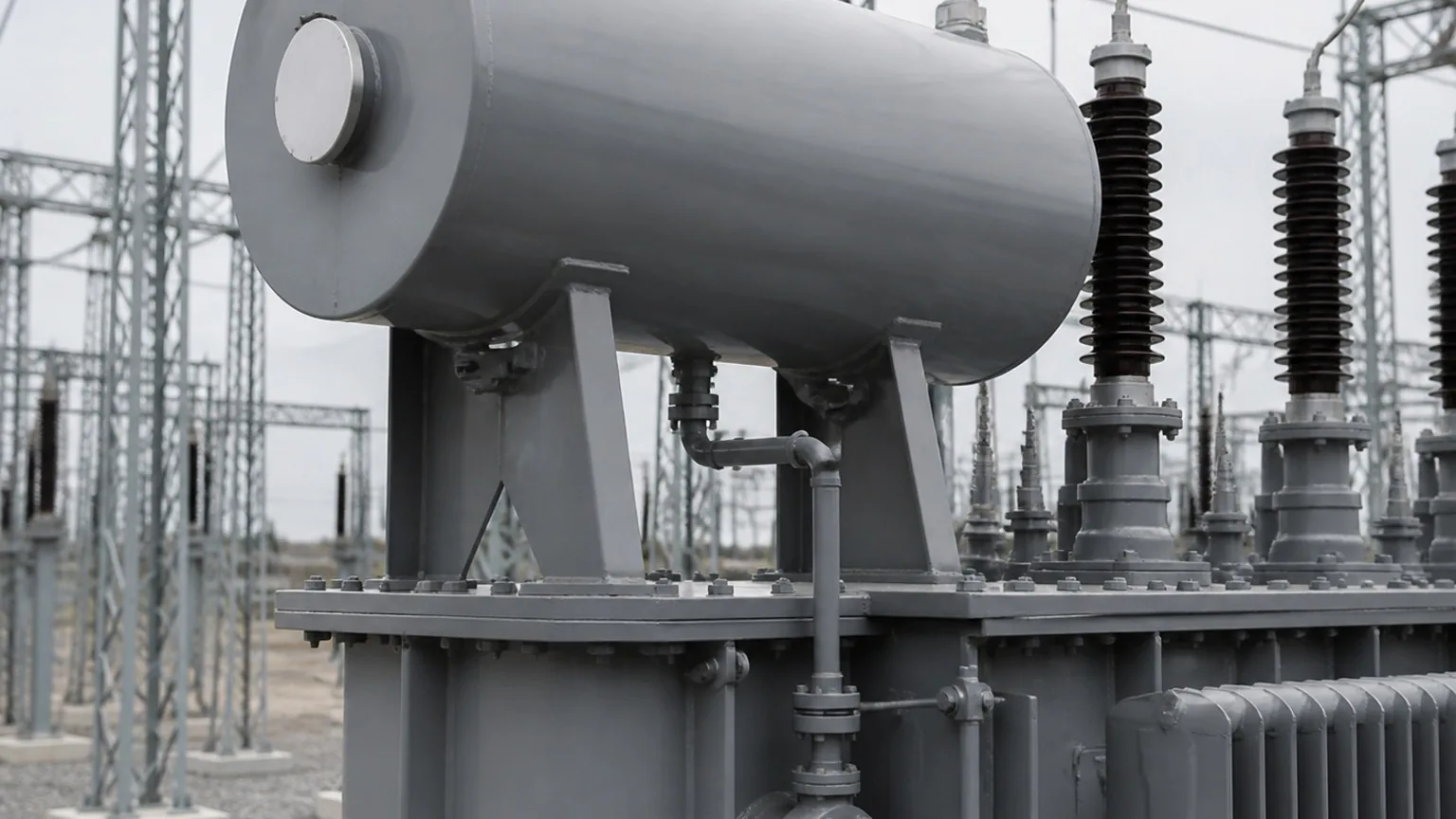

Cylindrical conservators with end caps, oil-level gauge provisions, drain and fill bosses, Buchholz piping flanges and mounting saddles.
Header pipes, blanking plates and bolted radiator mounting flanges to the OEM's pattern.

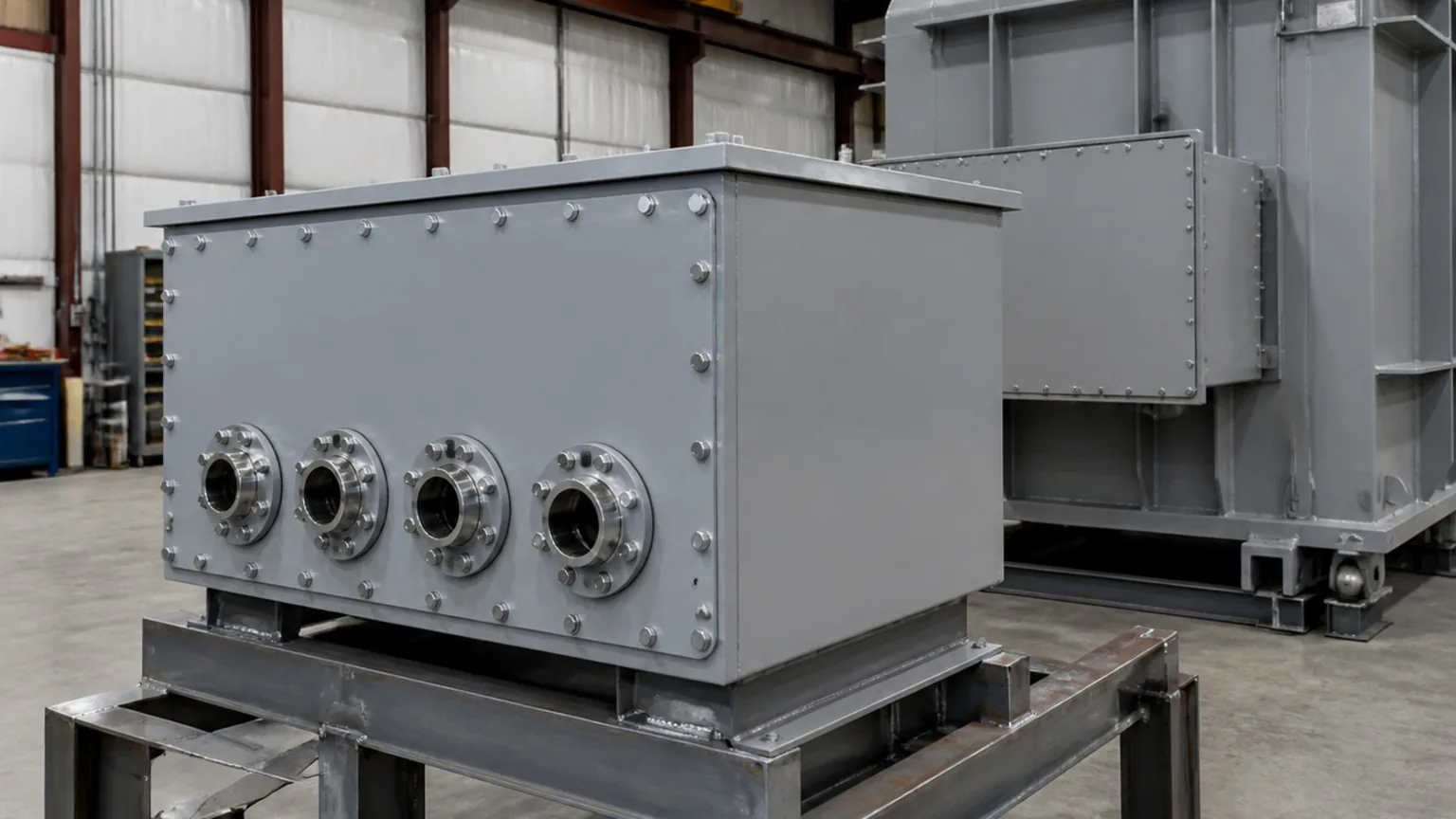

Air-insulated cable boxes, bushing enclosures and terminal compartments, sealed and vented per design.
Jacking pads, lifting lugs, wheel and skid bases, control-cabinet brackets and radiator support frames.
New accessories for OEM production or replacements detailed from field measurements for rebuild shops.
Every oil-filled transformer from distribution pad-mounts to substation power units has a cover; conservator-type units add the expansion tank. Transformer OEMs buy covers and accessories to complete production tanks; transformer repair and remanufacturing shops buy replacement covers, conservators and cable boxes detailed to the unit on their floor; utilities and data center owners buy them through their OEM or service provider when a unit is rebuilt in place.
FabTek serves the transformer OEM segment directly, and the same fabrication supports the tank bodies we already build, so the cover and the tank can ship as a matched set.
| Materials | Carbon steel plate and pipe; stainless for gauge and gasket-critical surfaces where specified |
|---|---|
| Covers | Bolted (gasketed) or welded; bushing pads, PRD and gauge bosses, manholes, lifting lugs; flange machined flat to the tank pattern |
| Conservators | Cylindrical with dished or flat ends, oil-level gauge bosses, drain and fill, breather and Buchholz flanges, saddles |
| Accessories | Radiator headers and flanges, cable boxes, terminal enclosures, jacking pads, lifting lugs, brackets and support frames |
| Testing | Weld inspection; pressure or leak test on covers, conservators and headers where the drawing requires it |
| Finish | Powder coat in-house, matched to the tank body (ANSI 61, ANSI 70, Munsell green and OEM colors); bare and primed on request |
| Welding | Certified welders to the OEM's weld procedure specification; AWS D1.1 |
| Documentation | Material test reports with heat numbers, weld and test records, finish records; ISO 9001:2015 |
| Also specified as | Transformer cover, tank cover, transformer lid, conservator, expansion tank, oil conservator, radiator header, transformer cable box, bushing enclosure |
Representative capabilities — exact ranges, ratings, and finishes are confirmed per project. Send drawings for a firm quote.
The failure mode on a cover is a flange that doesn't seal, and the usual cause is a cover and a tank that were made in two places to two interpretations of the same drawing. When FabTek fabricates both, the cover is machined to the actual tank flange, trial-fit and gasketed before either piece is painted, and the two ship together in the same color lot. When we fabricate the cover alone, we work from the OEM's flange pattern and can trial-fit against a supplied template. Our guide to conservators, covers and transformer tank accessories explains what each piece does.
Built at four production sites in Hazlehurst, Mississippi.
ISO 9001:2015 quality management, AWS-certified welding, OSHA-compliant facilities.
In-house powder coat backed by an IEEE 2000-hour salt-spray certification.
Reserved-line capacity and the automation to grow with your volume.
Yes. Covers, conservators, radiator headers and cable boxes can be ordered on their own to the OEM's drawings, or as a matched set with a FabTek tank body.
FabTek Industries fabricates transformer tank covers, conservators and accessories to print at its Mississippi plants for transformer OEMs and repair shops, with in-house powder coat and nationwide shipment.
Where the drawing calls for it, yes — covers, conservators and headers are pressure or leak tested before finish and shipped with the test record.
Yes. For rebuild and repair work we detail covers and accessories from the shop's measurements or the original drawings and fabricate to fit the existing tank.
Explore related lines: Transformer tanks · Power transformer tanks · Corrugated-wall tanks · Pad-mount transformer tanks · Round & pole-mount tanks
Further reading: Conservators, covers and tank accessories · Welded vs. bolted transformer tanks · How to qualify a transformer tank fabricator
Have covers or accessories to quote? Send the drawings and the flange pattern — we'll come back with a fabrication plan and a firm price, typically within one business day.
