Haas VF-series and Hurco VMX42i vertical machining centers for the surfaces that have to be true — flange and gasket faces, bushing pads, base plates, precision hole patterns — machined on finished weldments and on parts to print.
A tank cover seals on a machined flange. A bushing sits on a machined pad. A pole stands on a base plate whose anchor-bolt pattern matches the foundation to a fraction of an inch. Those surfaces come off a vertical machining center, and at FabTek they come off one that sits beside the welding department so the part is machined after it is welded and true when it ships.

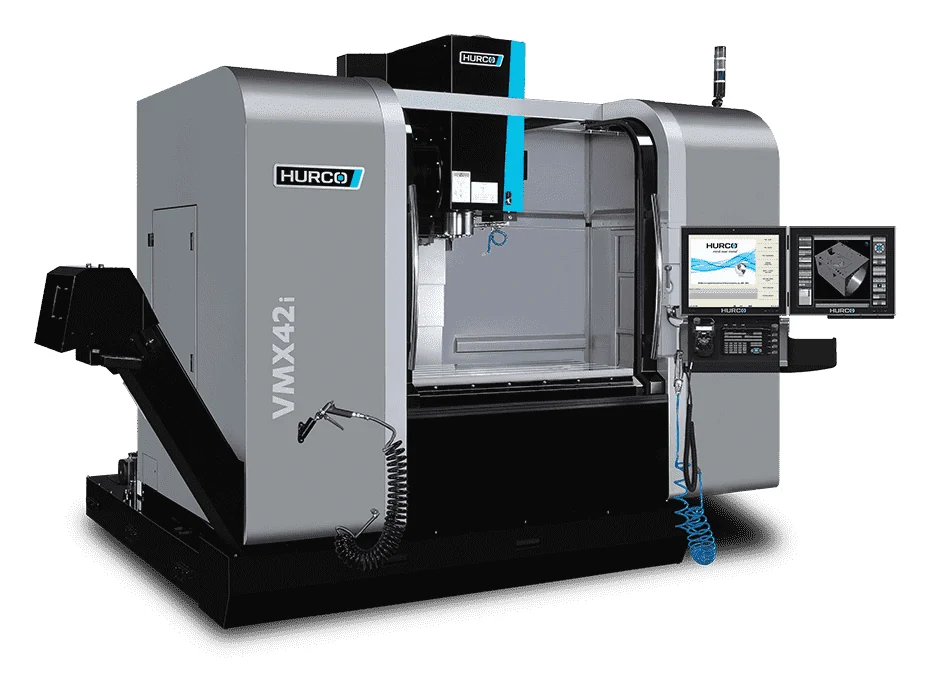

The milling cell runs Haas VF-series vertical machining centers and a Hurco VMX42i, programmed from the same models FabTek's engineering group details the fabrication in. Work ranges from facing a welded cover flange, to drilling and tapping a bolt pattern in a base plate, to milling pockets, slots and features in brackets and fittings. Manual mills and a Bridgeport handle secondary operations and one-off repair work.
Tank cover flanges, conservator flanges and cable-box faces machined flat on the finished weldment.
Bushing pads, gauge bosses and mounting pads faced and drilled to the OEM pattern.
Anchor-bolt and connection patterns drilled, bored and tapped to tolerance.
Pockets, slots, counterbores and features milled in fabricated and solid parts.
Welded assemblies fixtured and machined as a unit.
Parts milled to print for customers who need machined components alone.
The same model the fabrication was detailed in.
Covers, plates and brackets machined after welding.
Facing, drilling, tapping, pockets and slots.
Machined faces mate to bushings, headers and covers.
Transformer tank covers and conservators, power and pad-mount tank bushing pads, base plates for tubular poles and equipment stands, bus duct flanges and fittings, and conveyor drive and bearing mounts.
| Machines | Haas VF-series vertical machining centers; Hurco VMX42i vertical machining center; Jet and Bridgeport manual mills |
|---|---|
| Operations | Facing, pocketing, slotting, drilling, boring, tapping, counterboring; machined weldments |
| Materials | Carbon and alloy steel, stainless, aluminum, copper and brass, plastics |
| Programming | From FabTek engineering's models; STEP, SolidWorks and Inventor accepted |
| Inspection | Dimensional inspection per drawing; flatness on flange faces; ISO 9001:2015 |
| Also specified as | CNC milling services, vertical machining center, VMC machining, precision milling, machined flanges, base plate machining |
Representative capabilities — exact ranges, ratings, and finishes are confirmed per project. Send drawings for a firm quote.

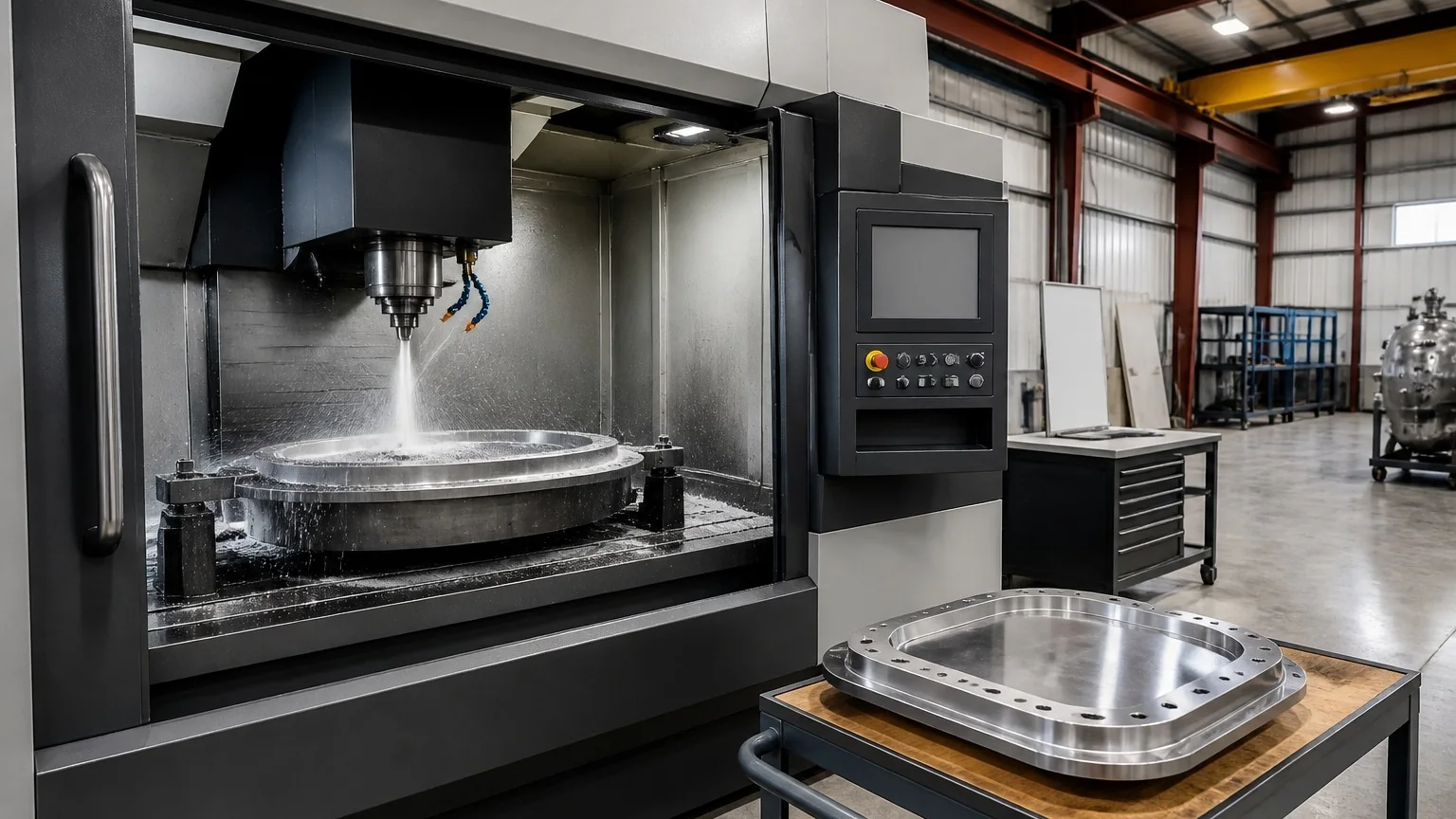

The failure a transformer OEM sees most from a tank supplier is a cover that doesn't seal, and the cause is almost always a flange that was flat before welding and isn't after. FabTek machines cover flanges on the VMC after the cover is welded and its stiffeners are on, so the face the gasket sees is the face the machine cut. Where FabTek builds both cover and tank, the two are trial-fit before paint. Our post on conservators, covers and tank accessories covers the rest of the assembly.
Built at four production sites in Hazlehurst, Mississippi.
ISO 9001:2015 quality management, AWS-certified welding, OSHA-compliant facilities.
In-house powder coat backed by an IEEE 2000-hour salt-spray certification.
Reserved-line capacity and the automation to grow with your volume.
Haas VF-series and Hurco VMX42i vertical machining centers, with manual mills for secondary work.
FabTek Industries mills cover flanges, bushing pads and base plates on its own VMCs at its Hazlehurst, Mississippi plants, after welding, so the surface is true on the finished part.
Yes. Customer weldments are fixtured and machined to your drawing.
The VMCs handle covers, plates and brackets in the sizes used on FabTek's products; send the drawing and we will confirm the envelope.
