The tank body behind the cabinet: single- and three-phase pad-mount tanks with cabinet interface flanges, covers, bushing pads and fittings — built to print, leak-tested and painted, supplied alone or paired with the pad-mount cabinet.
A pad-mount transformer is a tank with a cabinet bolted to its front. OEMs buy them as separate part numbers, often from separate suppliers, and the fit between the two — the cabinet flange to the tank front, the sill to the tank base, the bushing wells to the cabinet's interior clearances — is where field problems start. FabTek builds both, and builds them to fit each other.

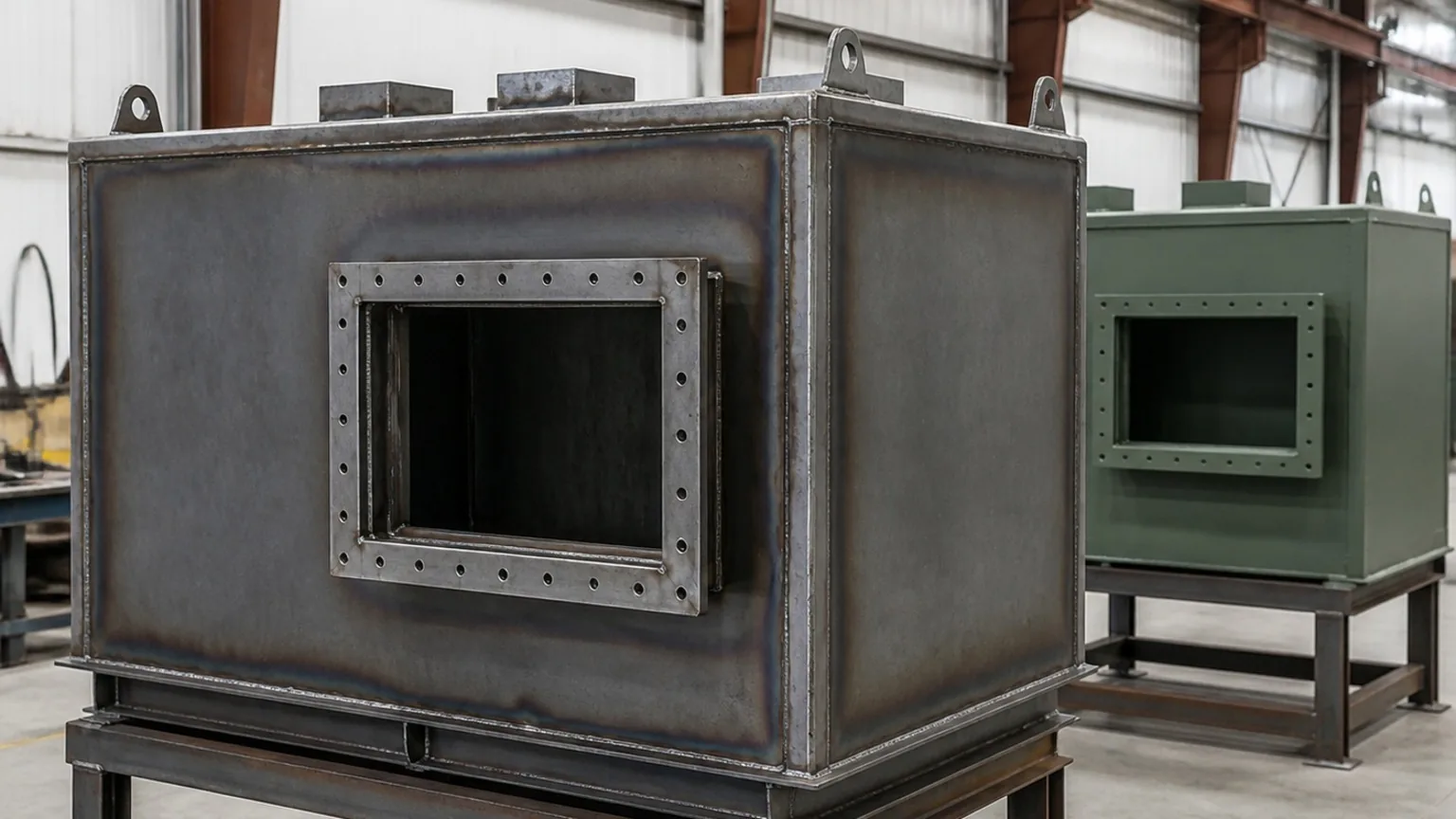

We fabricate pad-mount tank bodies to OEM print at our Hazlehurst, Mississippi plants: corrugated-wall or smooth-wall construction with radiator provisions, welded floors and top frames, bolted or welded covers, cabinet interface flanges, bushing pads, drain, fill and pressure-relief fittings, lifting lugs and parking-stand provisions. Every tank is leak-tested before finish and powder-coated in-house to the utility color. Program customers run tanks and cabinets on the same dedicated line with one release schedule.
Rectangular tanks for three-phase pad-mounts, dead-front and live-front, with cabinet interface to print.
Compact tanks for single-phase units, high volume.
Covers, top frames, bushing pads, hand-hole covers, gauge and relief fittings.
Utility and cooperative pad-mount distribution programs; the pad-mount fleets serving data center campuses and industrial parks; remanufacturers replacing damaged tanks.
| Construction | Corrugated-wall or smooth-wall with radiator provisions; welded floor and frame; bolted or welded cover |
|---|---|
| Material | Carbon steel sheet and plate, gauge per drawing |
| Configurations | Single- and three-phase; dead-front and live-front; loop and radial feed interfaces |

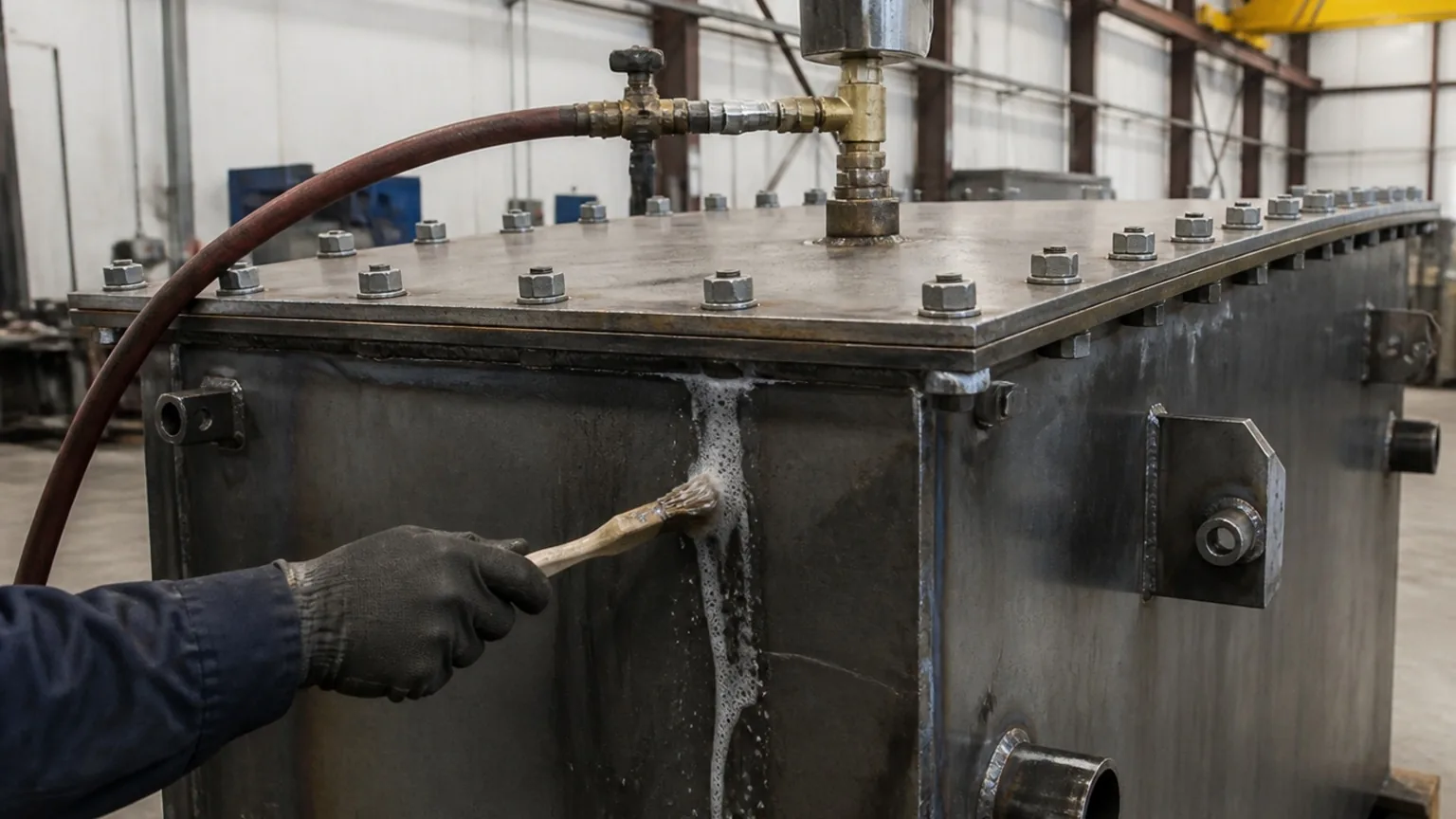

| Testing | Leak test on every tank before finish |
| Welding | AWS-certified GMAW / GTAW |

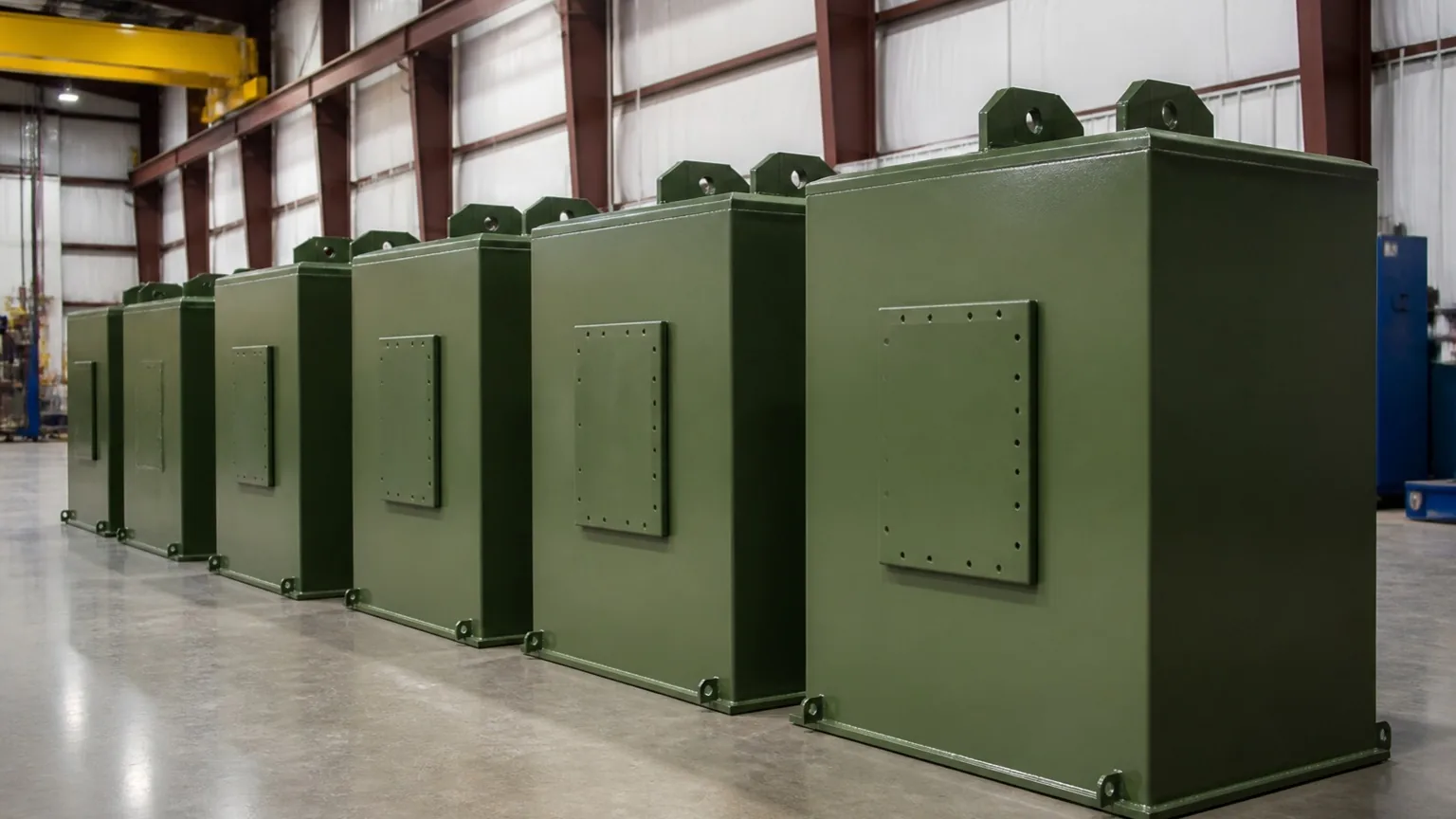

| Finish | In-house blast and powder coat to utility color (Munsell green typical) |
| Volume | Hundreds per month with cabinets on dedicated lines |
| Also specified as | Pad-mount transformer tank, padmount tank, pad-mounted transformer tank body, distribution transformer tank, tank and cabinet set |
Representative capabilities — exact ranges, ratings, and finishes are confirmed per project. Send drawings for a firm quote.
Built at four production sites in Hazlehurst, Mississippi.
ISO 9001:2015 quality management, AWS-certified welding, OSHA-compliant facilities.
In-house powder coat backed by an IEEE 2000-hour salt-spray certification.
Reserved-line capacity and the automation to grow with your volume.

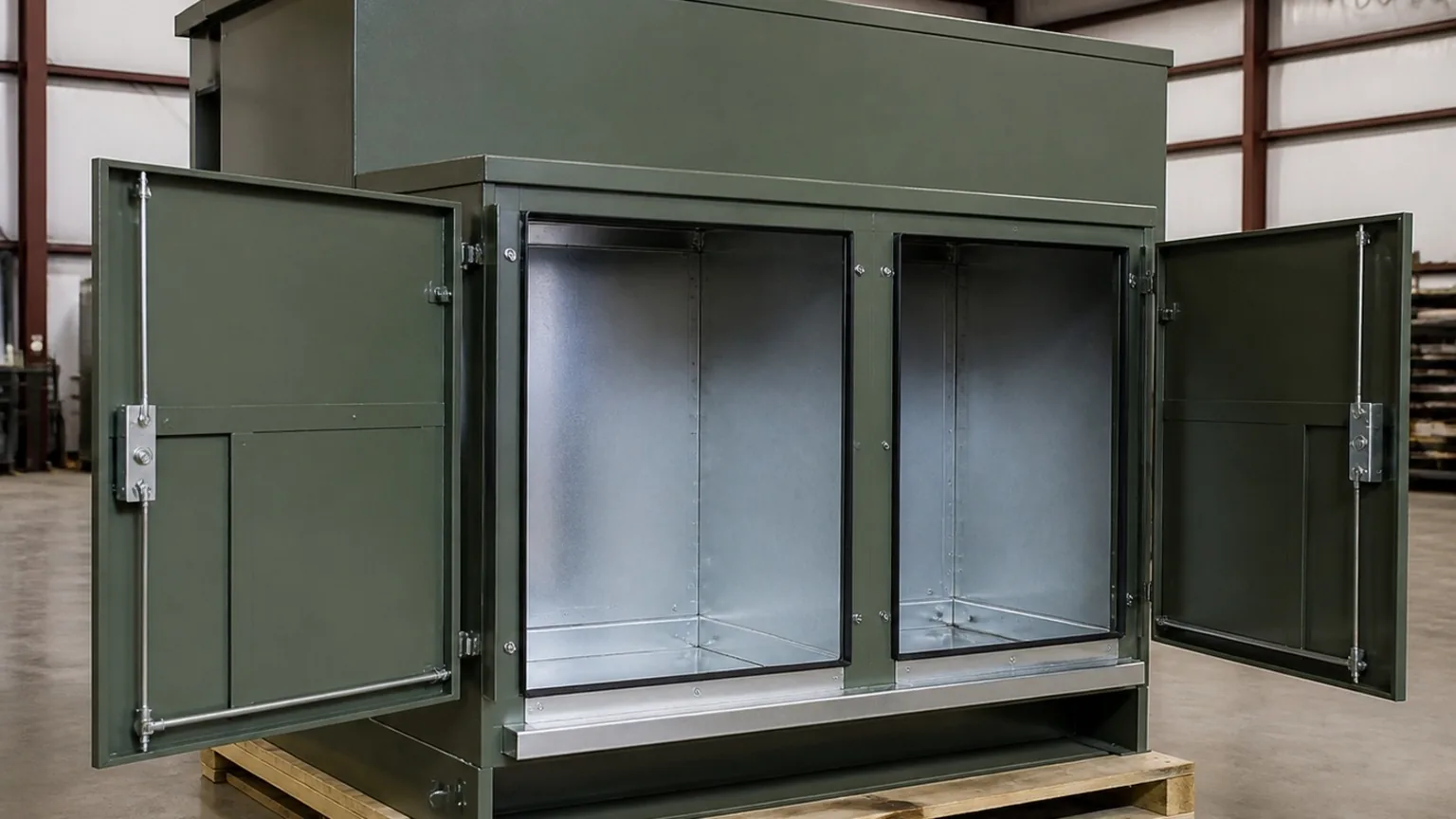

Yes — tank bodies and cabinets, fabricated to OEM print and fit-checked together, from the same plants in Hazlehurst, Mississippi.
FabTek supplies matched tank-and-cabinet sets to transformer OEMs and remanufacturers on dedicated production lines.
Yes — send the drawings and we'll fabricate to match, including fittings and color.
Either, per your print; see corrugated-wall tanks for the corrugated construction.
