Skid- and base-mounted generator enclosures for standby, prime and data center backup power — fabricated to your OEM or packager print with the airflow, access, exhaust and fuel provisions the genset needs.
Backup generation for data centers, hospitals, utilities and industrial sites is sold as a package: engine-generator, controls, fuel, and the enclosure that keeps weather out and airflow right. Genset OEMs and packagers have plenty of engine capacity and not enough enclosure capacity, and an enclosure that ships late holds the whole unit.
FabTek fabricates generator enclosures and genset housings to the OEM's or packager's print at our Hazlehurst, Mississippi plants: welded or bolted steel or aluminum structures, formed panel skins, intake and discharge louvers or hoods sized to the drawing, personnel and service doors, roof exhaust penetrations and silencer supports, and the base-rail interface to the skid or sub-base tank. Powder coat is applied in-house. We build the enclosure to your design — including acoustic panel construction where the packager's design calls for it — not the generator set.

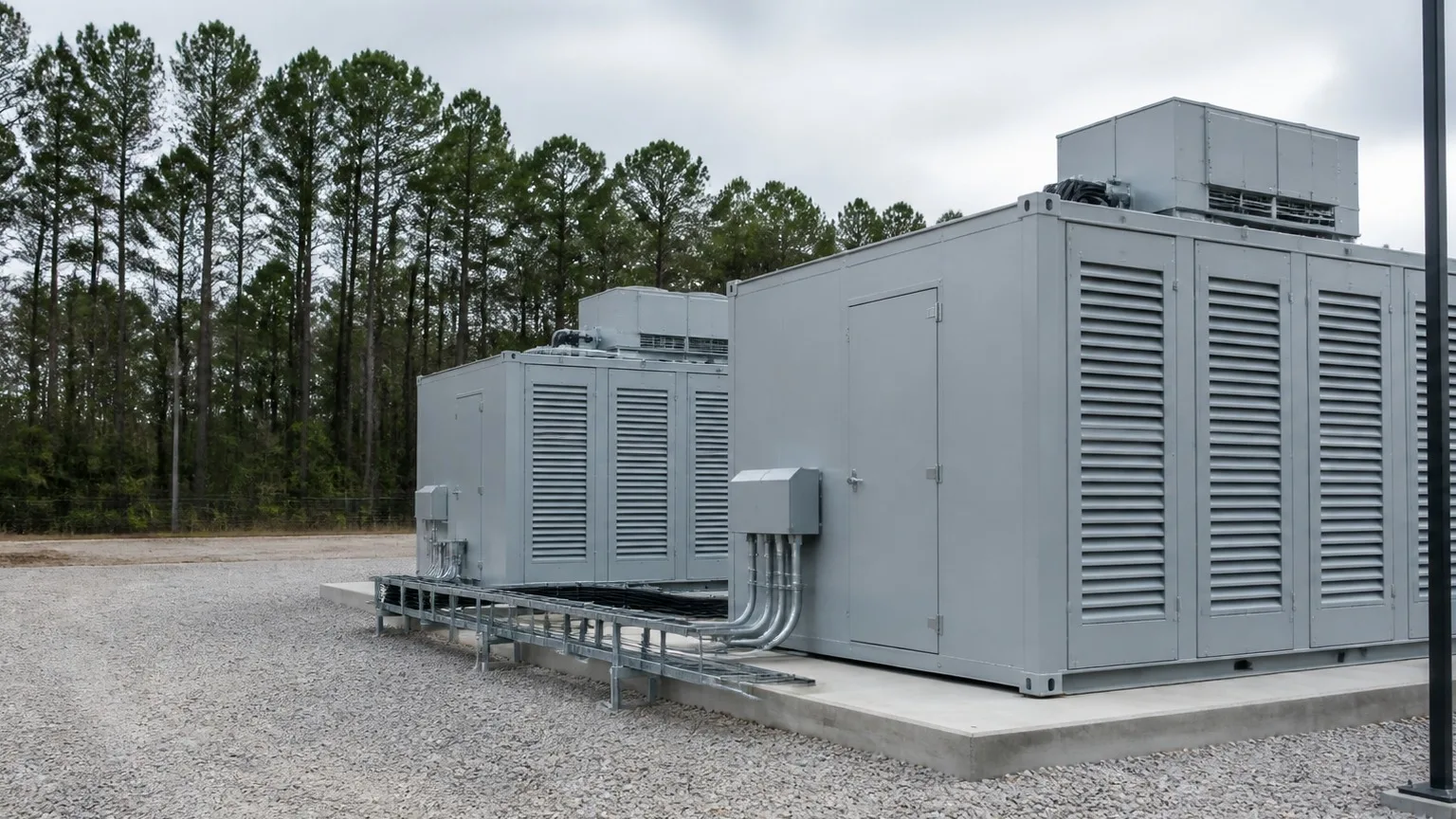

Steel or aluminum housings for outdoor gensets, with intake and discharge louvers, doors and roof penetrations to print.

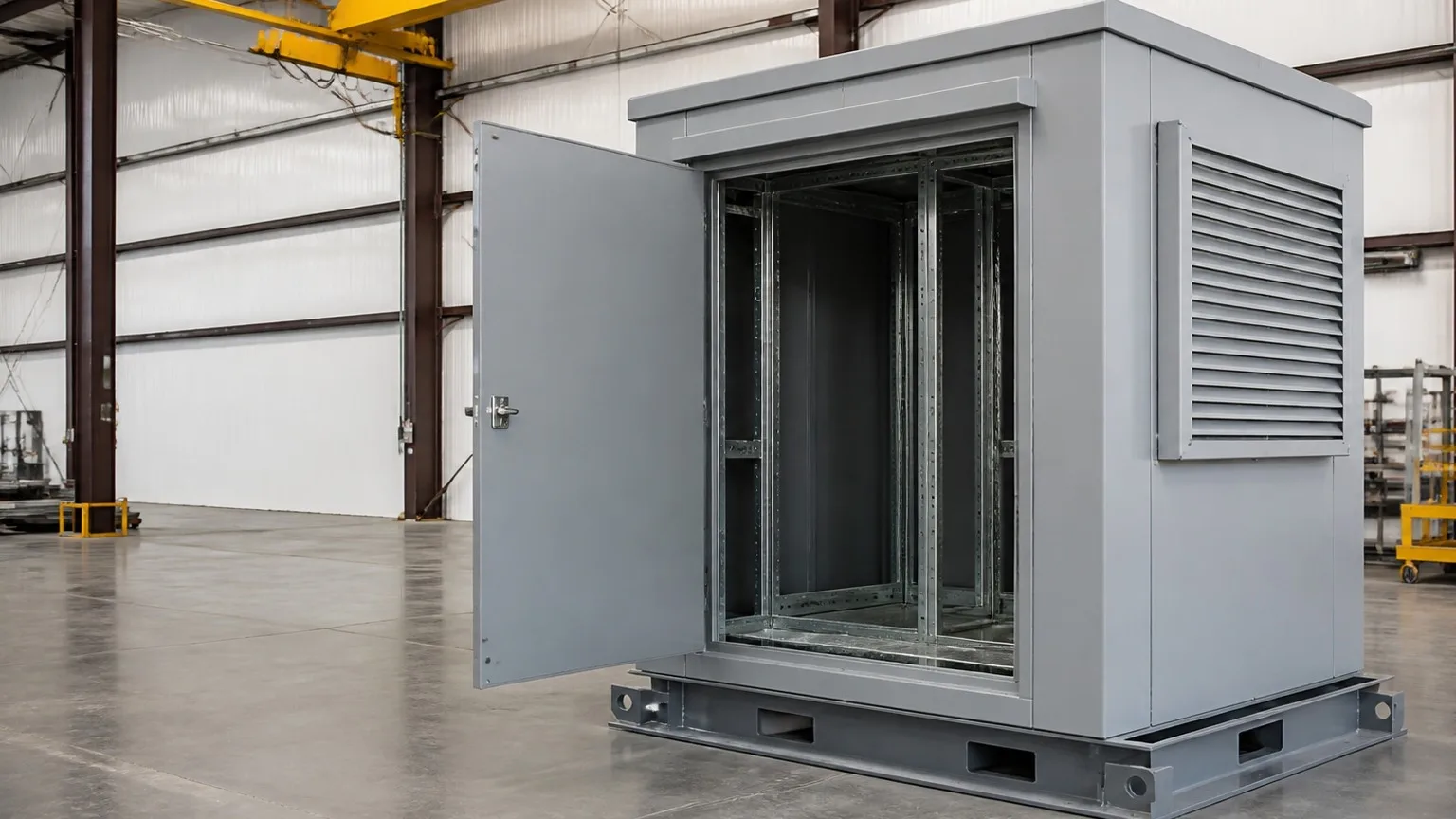

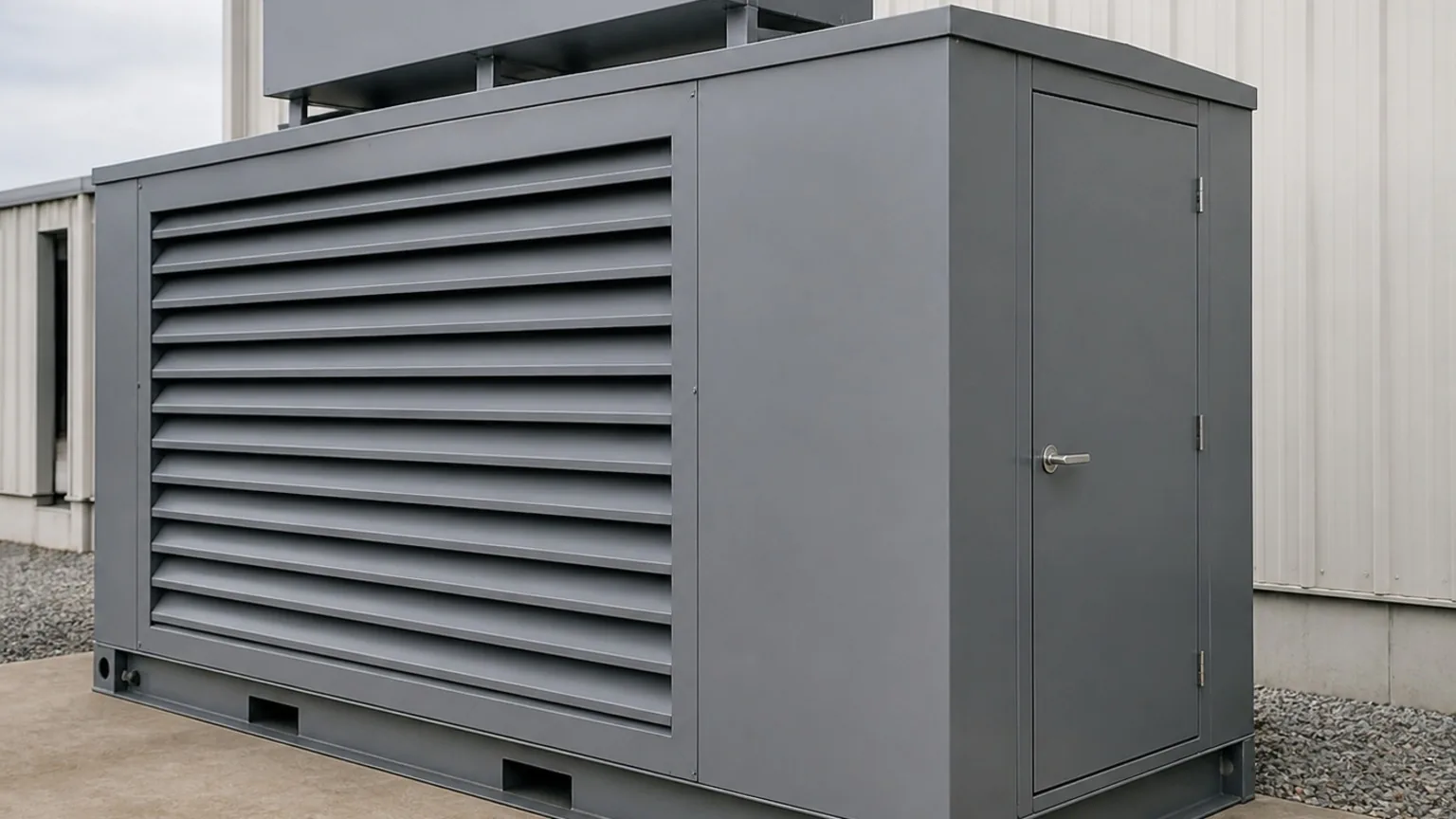

Larger enclosures with interior clearance for service, lighting and receptacle provisions, and interior partitions where specified.

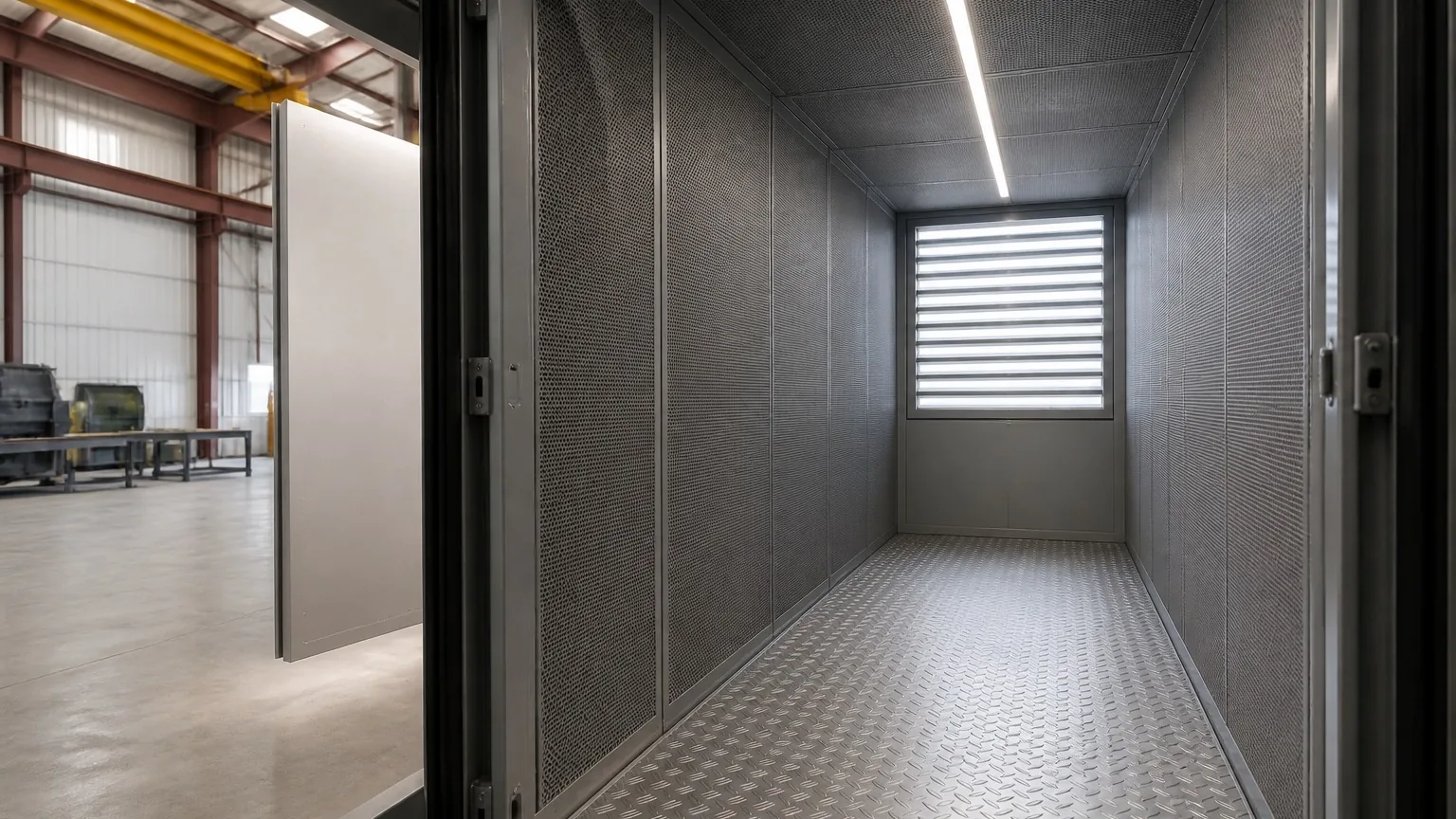

Housings with acoustic panel construction and baffled intake and discharge hoods, built to the packager's acoustic design.
Battery racks, exhaust and silencer supports, control-panel enclosures, rain hoods and base-rail interfaces to print.
Data center backup power blocks, where dozens of identical enclosures ship to one campus on a schedule; utility and telecom standby sites; hospitals, water plants and industrial facilities; and rental fleets that need robust, repairable housings. Our guide to generator and BESS enclosures for data centers covers the data center case in depth.
| Materials | Carbon steel (galvanneal or painted), aluminum 5052; stainless hardware |
|---|---|
| Construction | Welded frame with bolted or welded skins; bolted knock-down where specified for shipping |
| Ratings | Weather-rated (NEMA 3R-equivalent) enclosure construction; UL 2200 listing remains with the genset OEM |
| Airflow | Intake/discharge louvers, hoods and motorized damper frames sized to the OEM design |

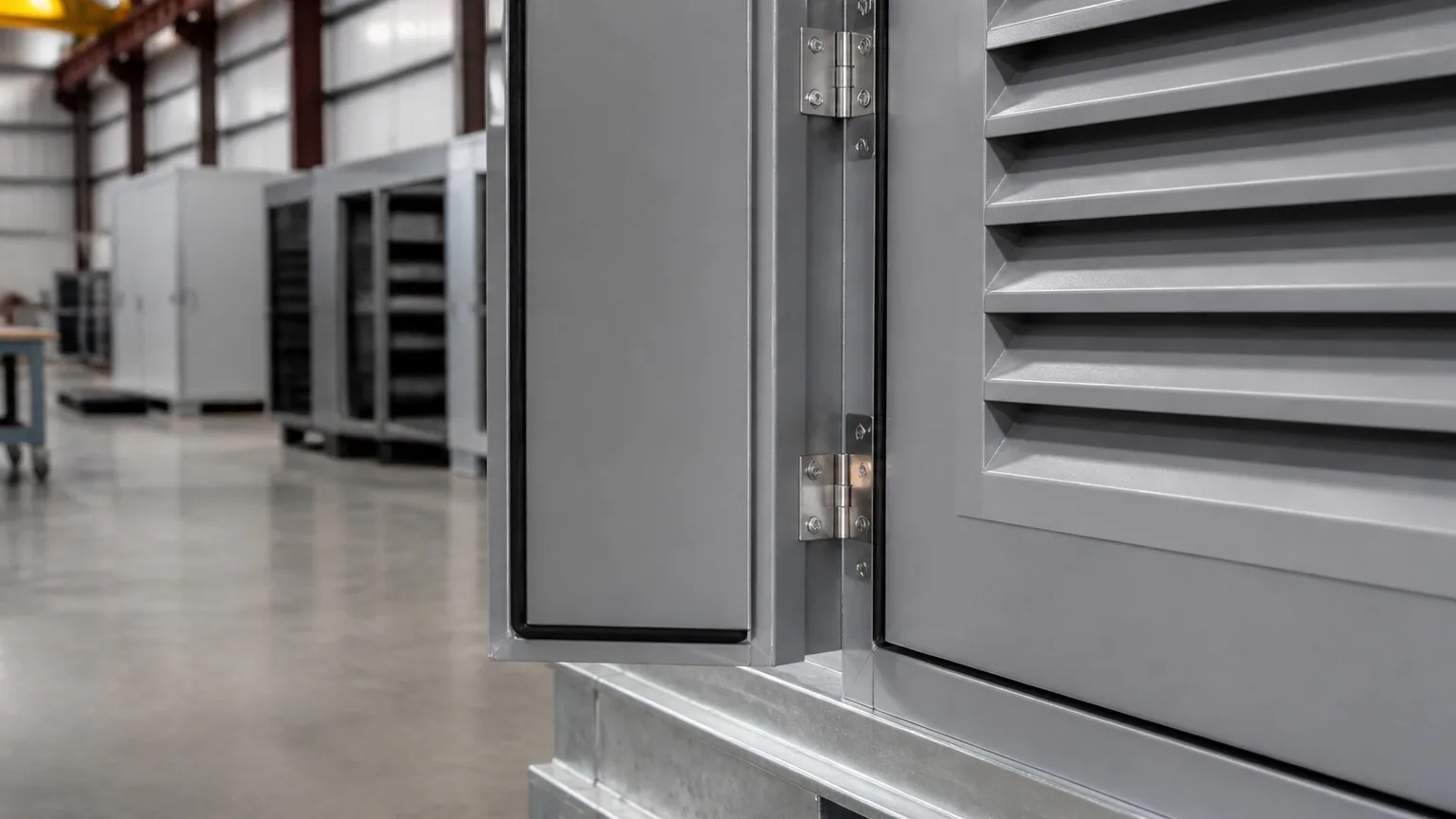

| Access | Personnel doors, service doors, removable panels, roof hatches as drawn |
| Finish | In-house powder coat; IEEE 2000-hour salt-spray rated; coastal packages available |
| Welding | AWS-certified, steel and aluminum |
| Sizes | Skid-mount through walk-in, to the packager's drawing |
| Also specified as | Generator enclosure, genset enclosure, generator housing, weatherproof generator enclosure, generator canopy, walk-in generator enclosure |
Representative capabilities — exact ranges, ratings, and finishes are confirmed per project. Send drawings for a firm quote.
A data center campus might order forty enclosures for identical gensets. The first one proves the drawing; the next thirty-nine have to match it exactly so the electrical, fuel and exhaust connections land the same way every time. FabTek builds repeat enclosures on fixtures, holds a controlled drawing revision per release, and can stage deliveries to the site's energization sequence — the same dedicated production line model we use for transformer cabinets.
Built at four production sites in Hazlehurst, Mississippi.
ISO 9001:2015 quality management, AWS-certified welding, OSHA-compliant facilities.
In-house powder coat backed by an IEEE 2000-hour salt-spray certification.
Reserved-line capacity and the automation to grow with your volume.
Yes — weatherproof and walk-in generator enclosures, fabricated in steel or aluminum to your drawings and powder-coated in-house at our Hazlehurst, Mississippi plants.
FabTek fabricates generator and BESS enclosures for data center power blocks and can run campus-scale repeat orders on dedicated lines with sequenced delivery.
The enclosure and associated metalwork only. Engine, alternator, controls and listing remain with the genset OEM or packager.
Yes — send the drawings or a reference unit and we'll fabricate to match.
Explore related lines: BESS enclosures · Switchgear enclosures · Equipment skids & platforms · Custom fabrication
Further reading: Generator & BESS enclosures for data centers · Powder coat film thickness for outdoor enclosures · IEEE 2000-hour salt spray
Send the enclosure drawing package and the unit count — we'll quote it as a program with a delivery schedule.
