Gasketed, hose-tight enclosures for washdown, coastal and corrosive environments — fabricated to print in 304/316 stainless, aluminum or powder-coated steel, from wall-mount boxes to free-standing cabinets.
NEMA 4 adds hose-directed water and windblown dust to the 3R requirements; NEMA 4X adds corrosion resistance on top. That means continuous gasketing, no drain holes, clamped or heavily latched doors, and either a corrosion-resistant material or a coating system proven in salt fog. Food and beverage plants, water and wastewater, chemical and petrochemical sites, coastal substations and Gulf Coast data centers all specify 4 or 4X for outdoor and washdown electrical equipment.
FabTek fabricates NEMA 4 and 4X enclosures to print at our Hazlehurst, Mississippi plants. 304 and 316 stainless welded to AWS D1.6 with seams ground and passivated in-house, aluminum 5052, or carbon steel under an in-house powder coat that carries an IEEE 2000-hour salt-spray rating. Continuous-pour or strip gasketing, stainless hardware, and door construction per the drawing. As with all our enclosures, we build to the rating you specify.

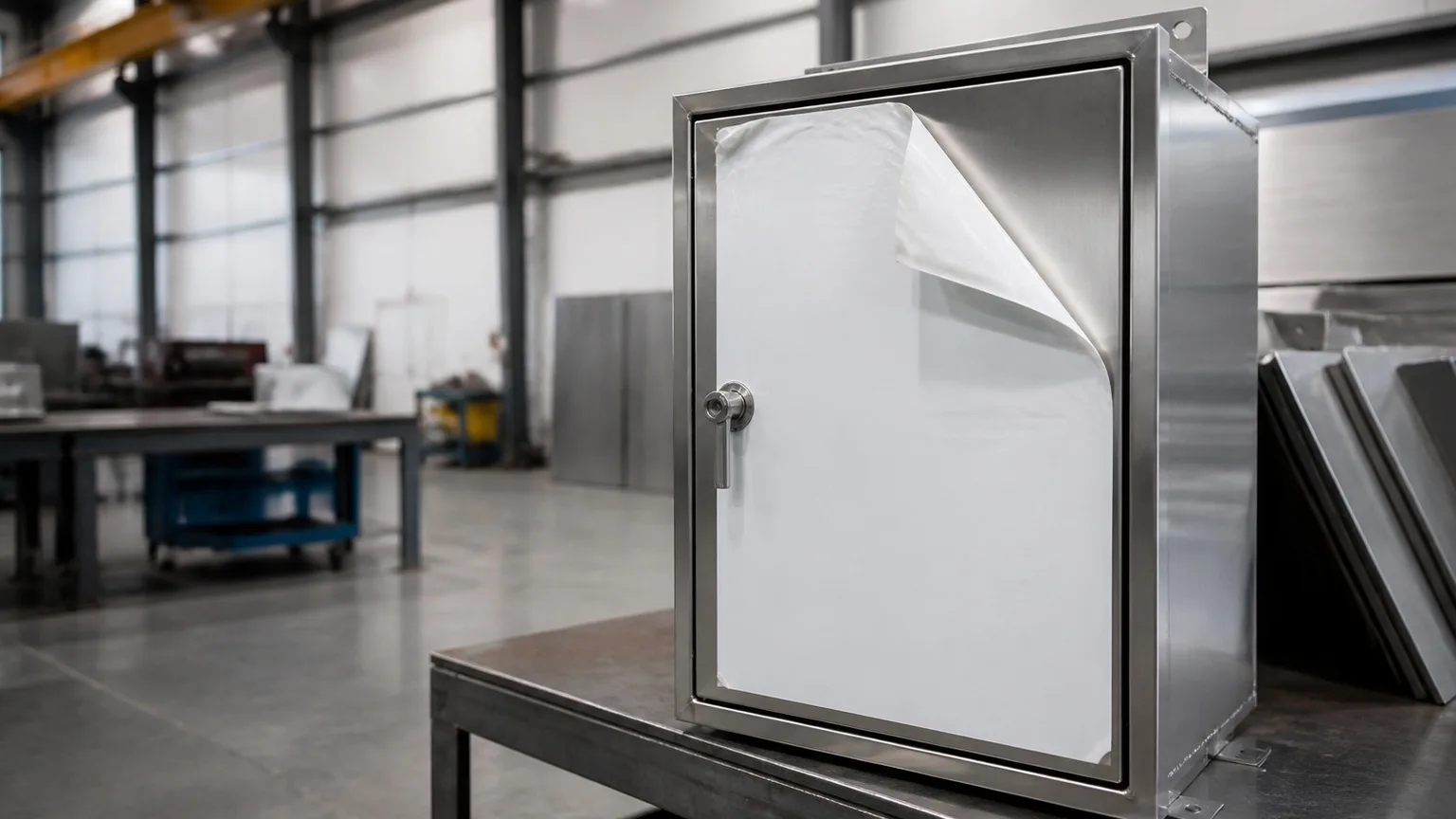

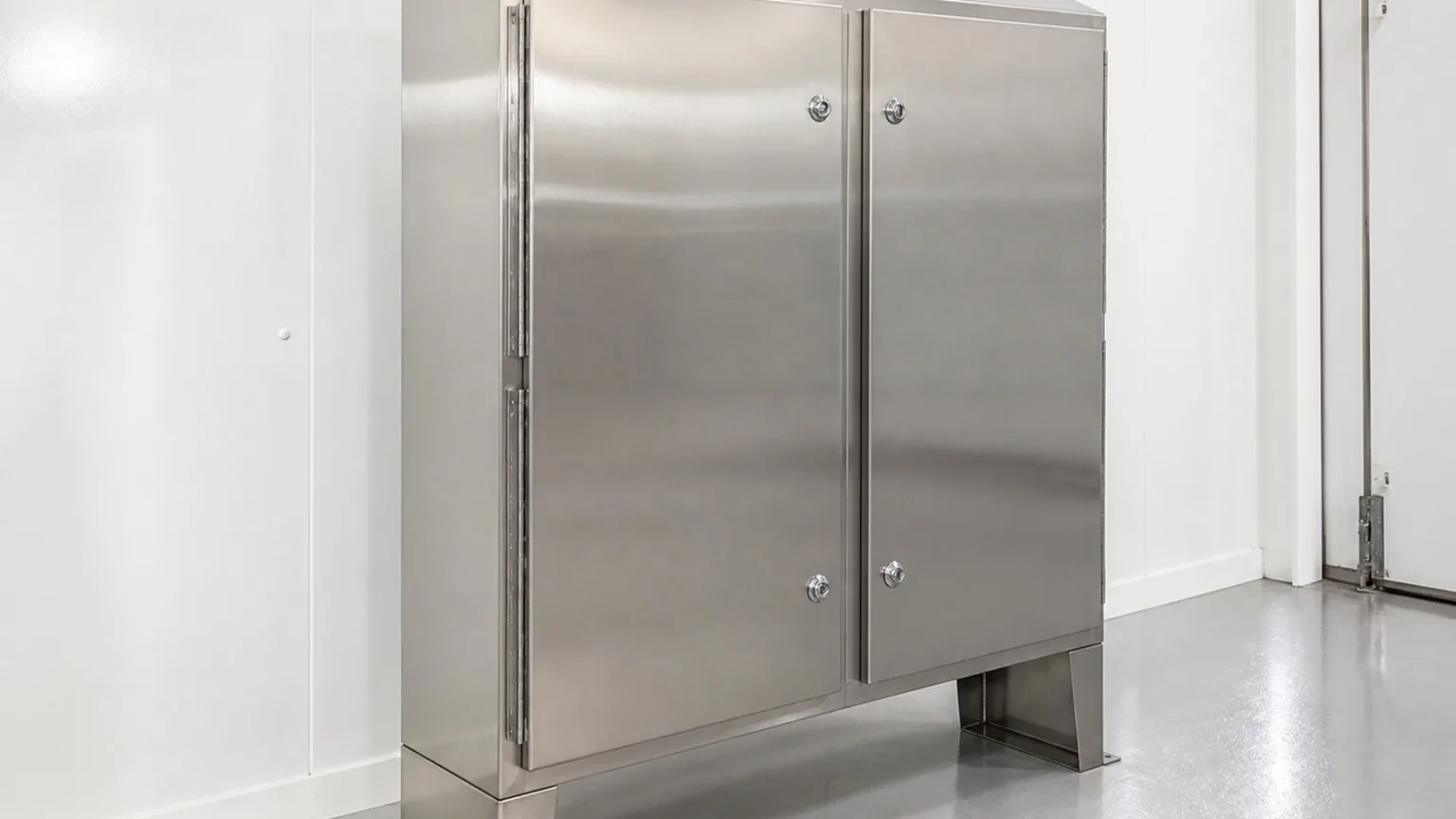

304/316 wall-mount, free-standing and two-door cabinets with continuous gasketing and stainless hardware for washdown and corrosive service.
Lighter-weight corrosion-resistant enclosures for coastal, telecom and utility outdoor service.
Carbon steel hose-tight enclosures for industrial and outdoor duty where corrosion is not the driver.
Sun shields, drip hoods, stainless vent kits and door retrofits for existing enclosures.
Food and beverage and pharmaceutical washdown areas; water and wastewater treatment; chemical, petrochemical and refining sites along the Gulf Coast; coastal and offshore-adjacent substations; marine and port facilities; data centers in coastal or industrial atmospheres. Transformer and switchgear OEMs specify 4X cabinets for the subset of their fleet headed to those environments.
| Rating construction | NEMA 4 (hose-directed water, windblown dust) and 4X (adds corrosion resistance) per NEMA 250 |
|---|---|
| Materials | Stainless 304 / 316 / 316L; aluminum 5052; carbon steel with 4-rated coating system |

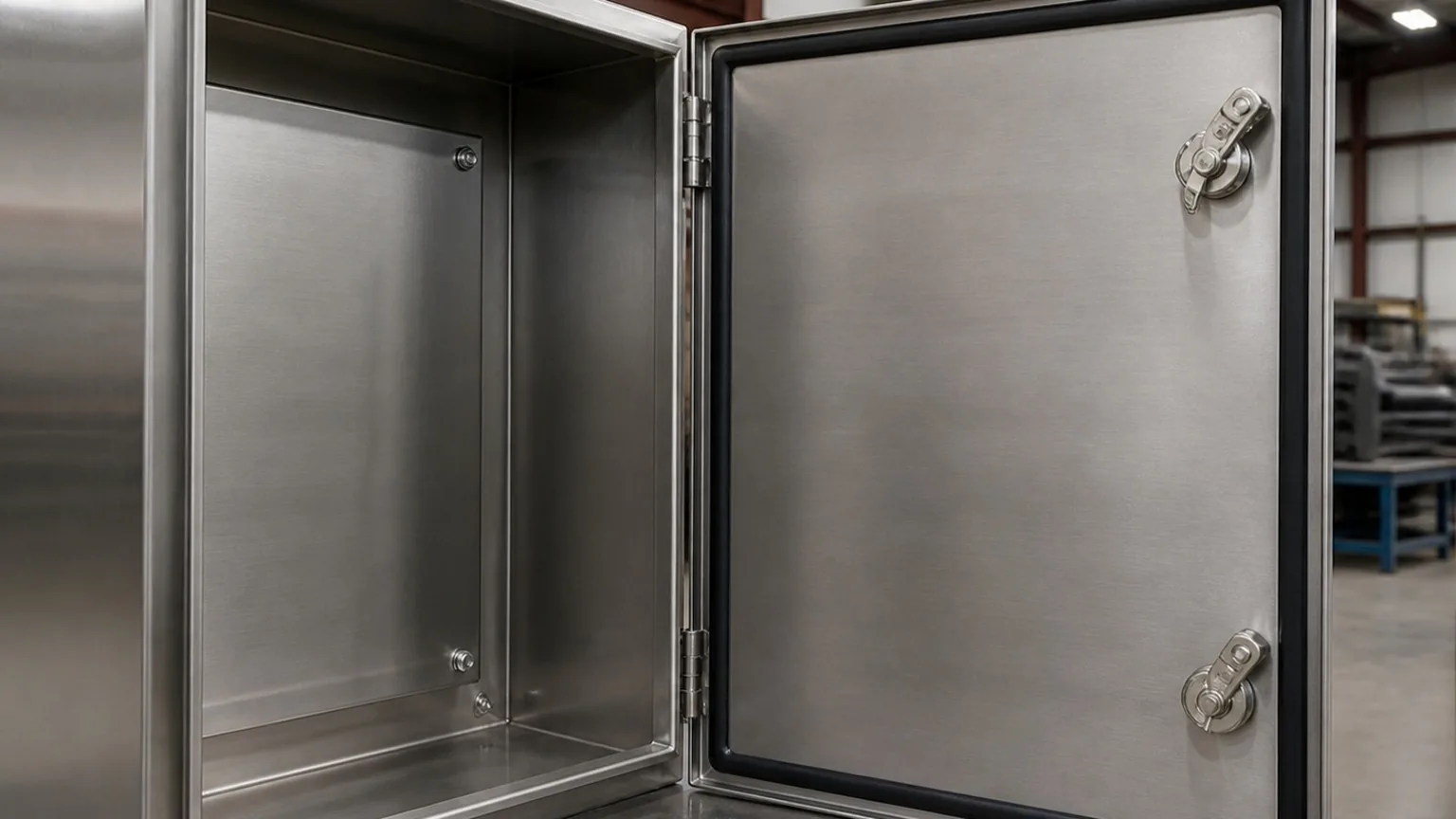

| Gasketing | Continuous closed-cell gasket, poured-in-place or strip; oil-resistant compounds as specified |
| Hardware | Stainless quarter-turn latches, clamps, padlockable handles, continuous or lift-off stainless hinges |
| Welding | AWS D1.6 stainless, D1.3 sheet steel; aluminum welding to AWS practice |
| Finish | Stainless: #4 brushed or as drawn, passivated in-house; steel: in-house powder coat, IEEE 2000-hour salt spray; UL 50/50E listed enclosures available |
| Interior | Sub-panels, DIN-rail provisions, grounding studs |
| Also specified as | NEMA 4X enclosure, stainless steel enclosure, washdown enclosure, hose-tight enclosure, corrosion-resistant electrical enclosure, Type 4X cabinet |
Representative capabilities — exact ranges, ratings, and finishes are confirmed per project. Send drawings for a firm quote.
A 4X enclosure that rusts at the weld seams isn't 4X. Stainless has to be welded with the right filler, kept away from carbon-steel contamination on the floor, and the heat tint removed or passivated so the chromium oxide layer reforms. FabTek runs stainless in dedicated welding cells under AWS D1.6 with certified welders, and our welding code guide explains why the code matters for the enclosure you're buying.
Built at four production sites in Hazlehurst, Mississippi.
ISO 9001:2015 quality management, AWS-certified welding, OSHA-compliant facilities.
In-house powder coat backed by an IEEE 2000-hour salt-spray certification.
Reserved-line capacity and the automation to grow with your volume.
Yes — 304 and 316 stainless NEMA 4X enclosures, plus aluminum 4X and powder-coated NEMA 4, fabricated to print at our Hazlehurst, Mississippi plants.
FabTek fabricates 4X enclosures for OEMs, utilities and industrial customers in the Gulf South and nationwide, with stainless welded to AWS D1.6 in dedicated cells.
It can meet the corrosion requirement if the coating system passes the specified salt-spray test; our in-house powder coat is IEEE 2000-hour salt-spray rated. For the most severe environments, stainless is the safer specification.
Both are hose-tight and dust-tight; 4X adds corrosion resistance. Our rating guide covers when each applies.
Explore related lines: NEMA 3R enclosures · Transformer cabinets · Control cabinets · Commercial & industrial fabrication
Further reading: NEMA 3R vs. 4 vs. 4X · IEEE 2000-hour salt spray · Which welding code applies
Tell us the environment and send the drawing — we'll recommend material and finish and quote it within one business day.
