Gravity Roller Conveyors
Unpowered roller lines for accumulation, order picking, packing and dock loading — built to your width, roller centers and grade, in fixed or adjustable-height frames, with curves, gates and stops.
Unpowered roller lines for accumulation, order picking, packing and dock loading — built to your width, roller centers and grade, in fixed or adjustable-height frames, with curves, gates and stops.

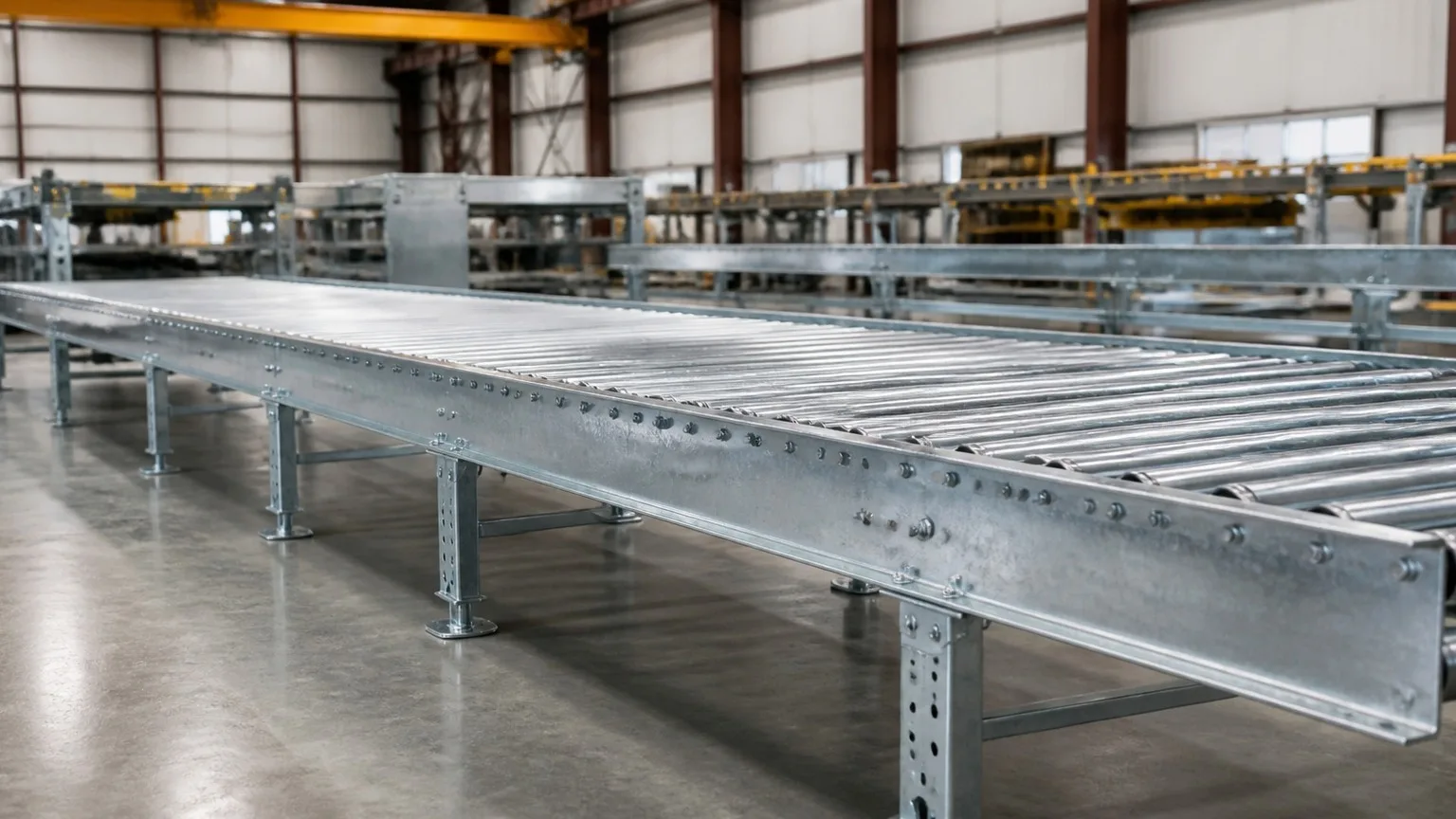

A gravity roller conveyor has no motor: cartons and totes roll on free-turning rollers set at a slight decline or pushed by hand. It is the backbone of packing and shipping areas, accumulation zones and dock lines, and because it has no drive, it either lasts decades or fails at the frame and roller bearings. Roller diameter, roller centers, frame gauge and bearing quality decide which.
FabTek fabricates gravity roller conveyors at our Hazlehurst, Mississippi plants to your width, length and load: formed carbon-steel or stainless channel frames, 1.9" or 2.5" diameter rollers on centers matched to your smallest carton, fixed or adjustable H-stands, and the curves, spurs, hinged gates, end stops and guardrails a real line needs. Powder-coated or stainless for washdown areas.

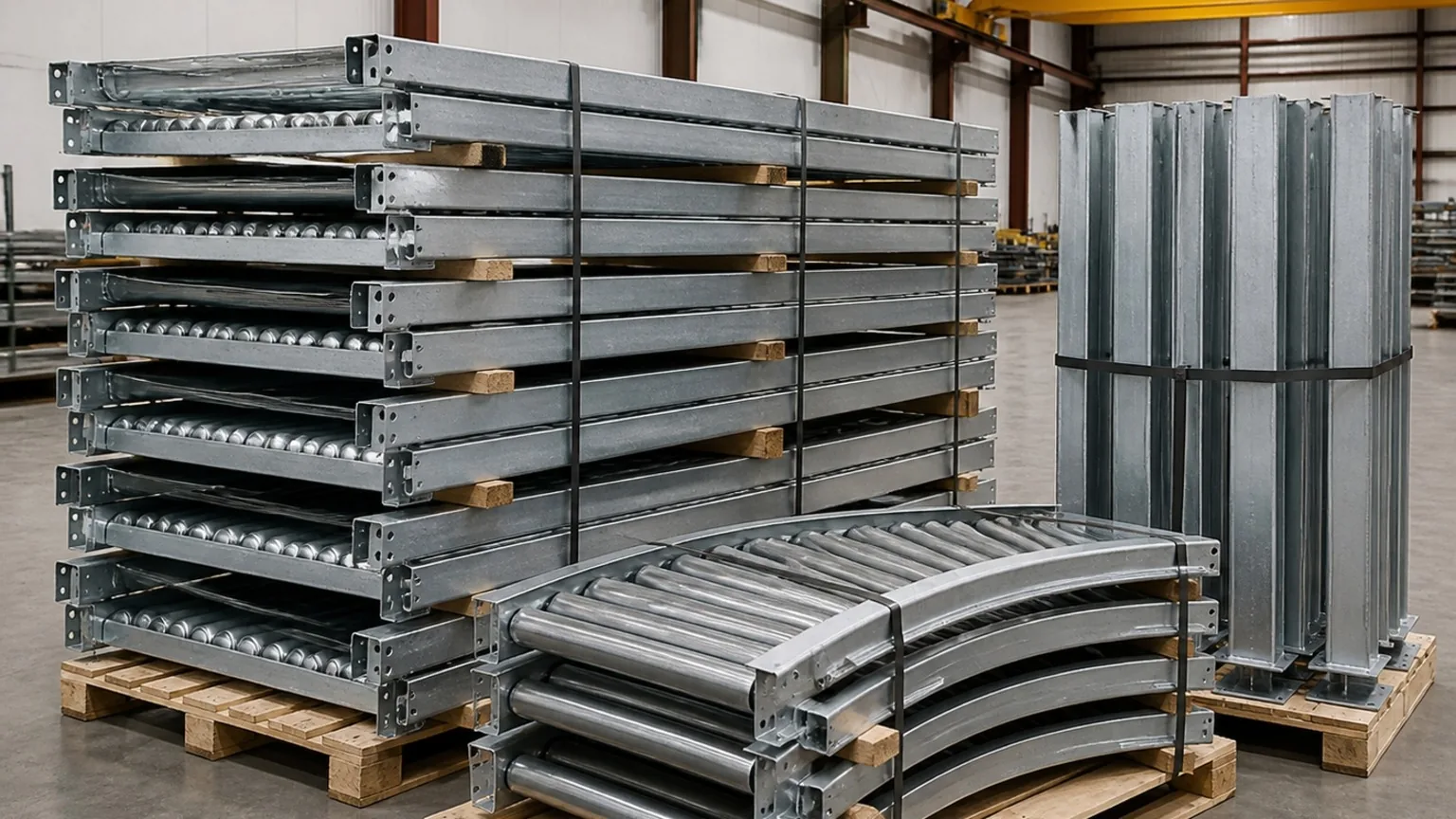

Standard 5' and 10' sections or custom lengths, bolted end to end.

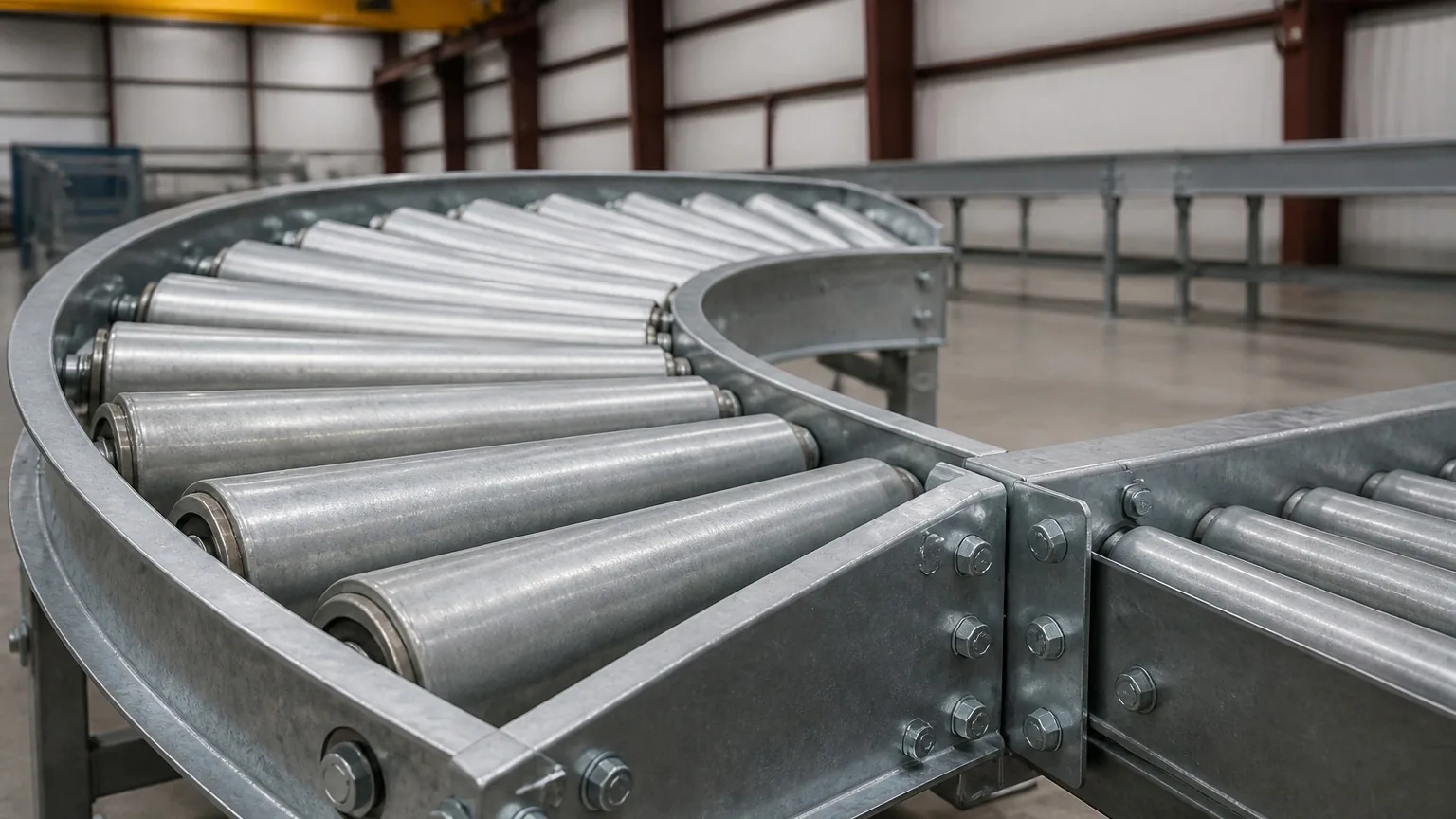

45° and 90° tapered-roller curves, spurs and merges.
Hinged walk-through gates, fixed and pop-up stops, adjustable side guides.
Fixed and adjustable-height H-stands, ceiling hangers, casters for portable sections.

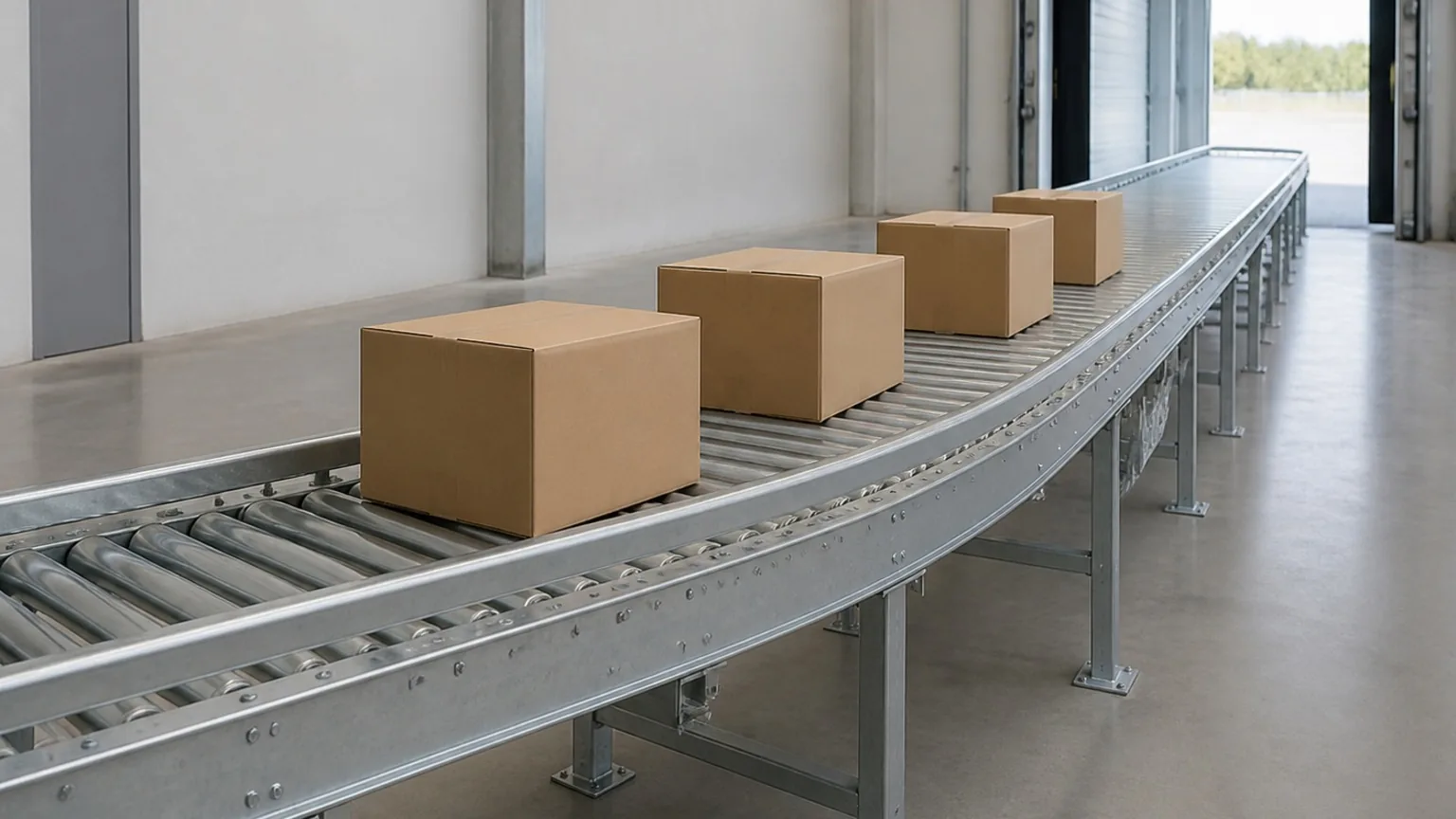

Packing and shipping, receiving docks, order-picking modules, accumulation ahead of machines, assembly cells, and any place a powered conveyor is more than the job needs.
| Frames | Powder-coated carbon steel or 304 stainless channel |
|---|---|
| Rollers | 1.9" or 2.5" dia galvanized or stainless tube, precision or semi-precision bearings; centers matched to your smallest carton |
| Widths | Built to your carton and line — matched to existing sections on request |
| Capacity | Per roller and per foot ratings by roller specification, confirmed at quote |
| Accessories | Curves, spurs, gates, stops, side guides, stands, casters |
| Also specified as | Gravity conveyor, roller conveyor, unpowered roller conveyor, packing conveyor, dock conveyor, accumulation conveyor |
Representative capabilities — exact ranges, ratings, and finishes are confirmed per project. Send drawings for a firm quote.
Built at four production sites in Hazlehurst, Mississippi.
ISO 9001:2015 quality management, AWS-certified welding, OSHA-compliant facilities.
In-house powder coat backed by an IEEE 2000-hour salt-spray certification.
Reserved-line capacity and the automation to grow with your volume.
At least three rollers under the smallest carton at all times — for a 9" carton, 3" centers or closer.
Yes — widths, roller spec and frame height matched so sections interchange.
Yes — stainless frames and rollers for wet or sanitary areas.
Yes — a complete line: straights, curves, gates, stops and supports.
Explore related lines: Conveyor systems · PVC belt conveyors · Process conveying systems · Custom fabrication
Send the carton sizes, widths and footage — we'll quote the line.
