The steel that carries the piping — yard and gallery pipe racks, overhead trapezes, floor stanchions, anchors, guides and shoes — detailed to the support schedule and finished for the environment it lives in.
A cooling plant's piping is only as good as its supports. Outdoor pipe racks carry the mains from the chillers and towers to the building; gallery racks and trapezes carry them overhead through the mechanical corridors; stanchions and saddles take the load at the pumps and headers; and anchors, guides and expansion shoes control where the pipe moves when it warms up. The support schedule is the engineer's; the hundreds of welded, galvanized and powder-coated parts on it are fabrication.
FabTek fabricates pipe supports and racks at our Hazlehurst, Mississippi plants: wide-flange and HSS rack bents and stringers cut on our robotic beam line, trapezes and brackets laser-cut and formed, anchors and shoes welded to AWS D1.1, hot-dip galvanized through our finishing partners or powder-coated in-house. Supports ship tagged to the support schedule and drawing, on the same trucks as the spools they carry.

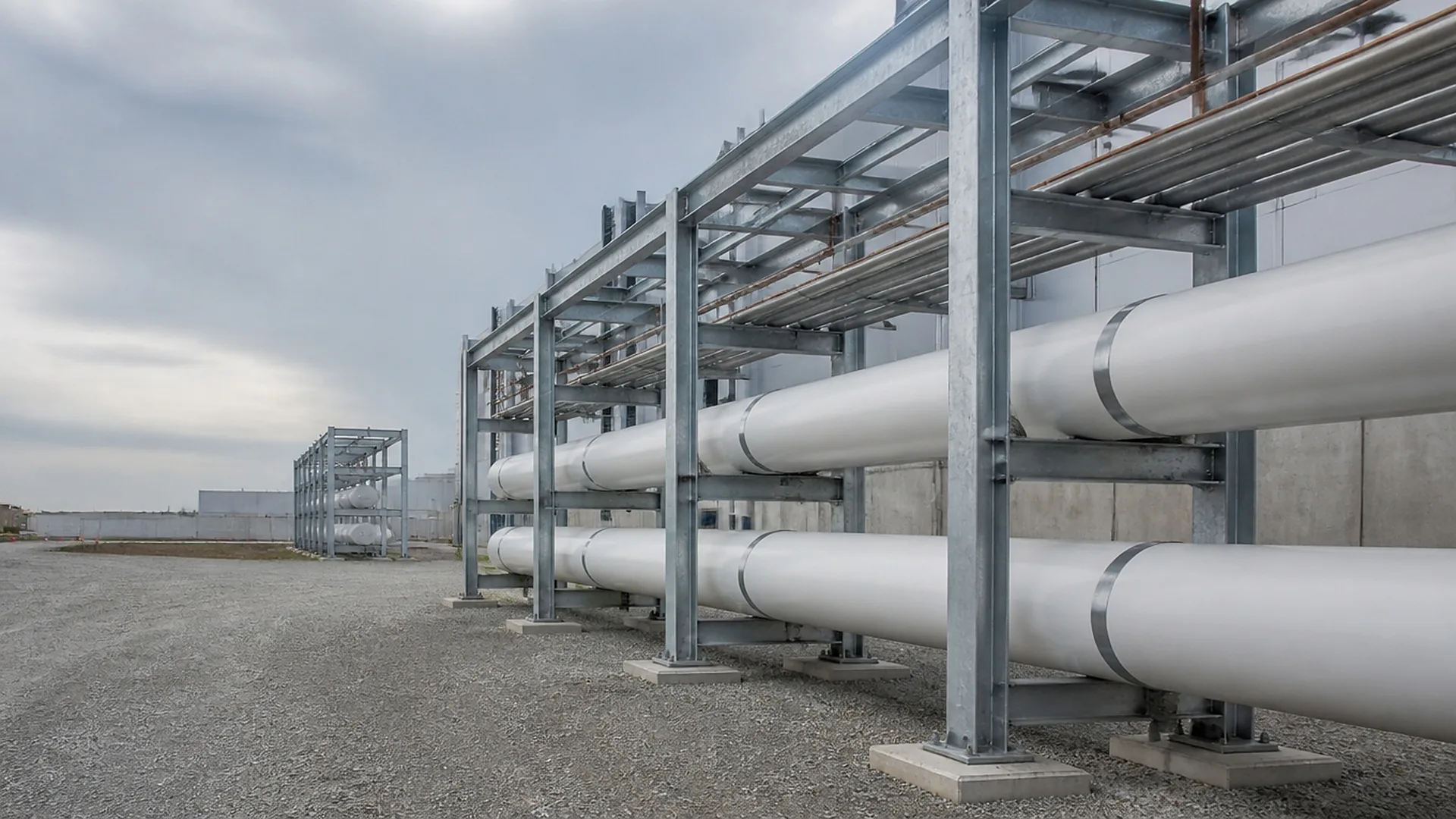

Multi-level yard and gallery racks in wide-flange and HSS, with base plates, bracing and anchor-bolt templates.

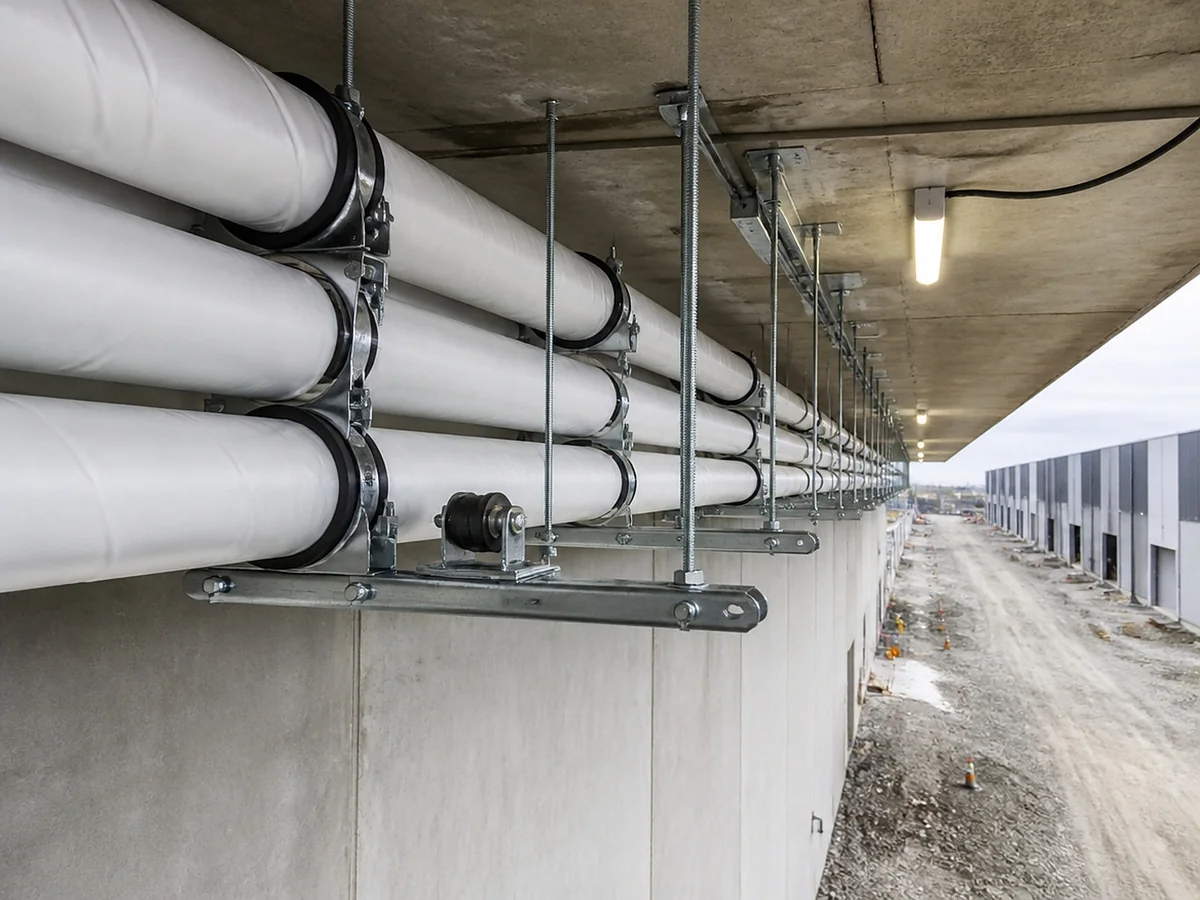

Welded trapezes, threaded-rod and strut assemblies, ceiling and beam clamps sized to the run.
Floor stands, pipe saddles, insulated and uninsulated shoes, dummy legs.

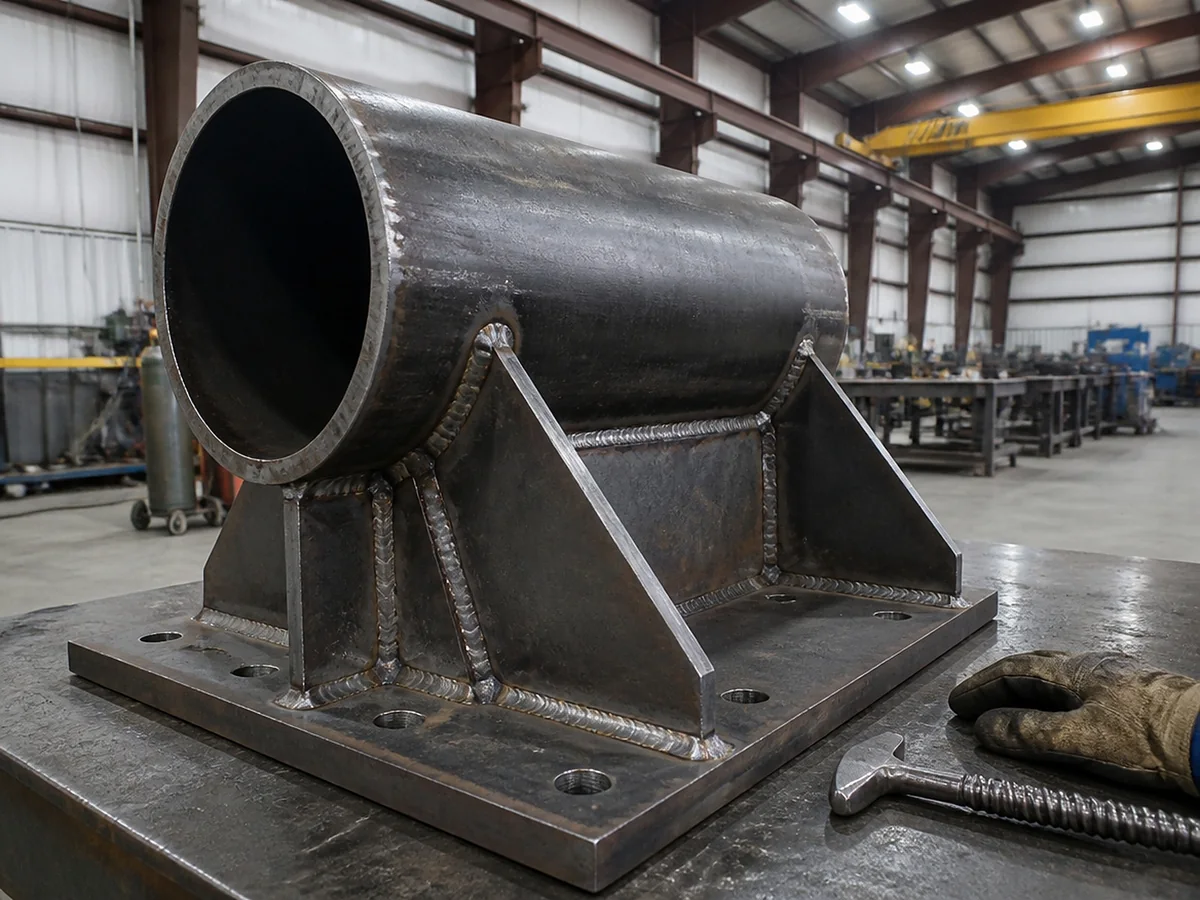

Welded anchor assemblies, directional guides and restraint frames at expansion points.
Spring and rigid supports at pumps, chillers and headers.
Send the support schedule and standard details; we fabricate each mark number to them.
Cooling-plant yards and mechanical galleries at data centers; chiller, pump and boiler rooms; rooftop piping to dry coolers and cooling towers; industrial process plants; and utility yards. Mechanical contractors buy supports with their spools; GCs and developers buy yard pipe racks with the other site steel; engineers specify them from standard details that we fabricate to.
| Materials | ASTM A36 / A572 Gr. 50 shapes and plate; A500 HSS; galvanized strut and hardware |
|---|---|
| Rack types | Single and multi-tier bents, T-supports, cantilever racks, sleeper supports |
| Supports | Trapezes, clevis and rod assemblies, saddles, shoes, stanchions, anchors, guides |
| Finish | Hot-dip galvanized (ASTM A123) through finishing partners; powder coat in-house for interior supports |
| Welding | AWS D1.1 by certified welders; D1.3 for light-gauge brackets |
| Documentation | Mark-number tags, material certs, galvanizing certs, dimensional inspection; ISO 9001:2015 |
| Also specified as | Pipe rack, pipe support, pipe hanger assembly, pipe anchor, pipe guide, pipe shoe, trapeze hanger, pipe stanchion |
Representative capabilities — exact ranges, ratings, and finishes are confirmed per project. Send drawings and a spec for a firm quote.
Supports get lost when they ship separately from the pipe they carry. FabTek tags every support to its mark number and location, bundles supports by area, and ships them on the same schedule as the spools, so the crew setting a header has the stanchions under it the same day. Rack bents ship with anchor templates so the foundations are drilled before the steel arrives.
Built at four production sites in Hazlehurst, Mississippi.
ISO 9001:2015 quality management, AWS-certified welding, OSHA-compliant facilities.
In-house powder coat backed by an IEEE 2000-hour salt-spray certification.
Reserved-line capacity and the automation to grow with your volume.
Yes. We fabricate structural pipe racks, trapezes, stanchions, anchors and guides to the engineer's support schedule at our Mississippi plants, galvanized or powder coated.
FabTek Industries fabricates the full support schedule alongside the pipe spools it carries, so one supplier delivers both on one schedule.
Yes. Outdoor supports are hot-dip galvanized to ASTM A123 through our finishing partners; interior supports are powder coated in-house.
The support design is the engineer's. We fabricate to the schedule and standard details and flag conflicts we find during detailing.
